Industrial Switching Hubs 10/100/1000Base-T
Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.
Move the mouse over or click the image to zoom
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 1,304,359VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
- Industrial Switching Hubs 10/100/1000 Base-T from MISUMI.
- Uses steel alloy shell, which meets IP40 requirements.
- It is stored in a wide temperature range of -40℃ to 80℃ and works correspondingly to ensure normal communication of the product.
- Surge protection up to 4KV at the worksite to protect the surroundings equipment.
- Economic type price to meet your price reduction needs.
- Mounting the device is a breeze with DIN rail support.
- The power supply of industrial switching hubs is DC12 to 52V.
Economy Switching Hub
- High-Speed Connectivity: Supports 10/100/1000Base-T for versatile network applications.
- Wide Operating Temperature Range: Functions reliably within specified temperature range.
- Surge Protection: Built-in protection safeguards equipment from electrical surges.
- Mis-wiring Prevention: Built-in features to prevent wiring errors.
- Available in multiple port configurations.
MISUMI Standard
Cheaper Price
Product Variety
3D CAD Support
Product of Switching hub Overview
・Uses steel alloy shell, which meets IP40 requirements;
・It is stored in a wide temperature range of -40℃ to 80℃, and works correspondingly to ensure normal communication of the Switching hub product;
・Surge protection up to 4KV at the worksite to protect the surroundings equipment; Economic type price to meet your price reduction needs!
Notice 1 : This product does not support PoE power supply
Notice2:To facilitate grounding and prevent screw thread stripping, once the current inventory is sold out, the grounding terminal will be equipped with an O-type crimp terminal for wiring (compatible with 0.5–1.5 mm² wires).
Notice3:For the 5-port product, after the current inventory is sold out, the two LED indicators (yellow and green) on the fifth port will be changed to a single yellow LED indicator (the green LED has no function and does not operate). See image below:
Product of Switching hub Feature

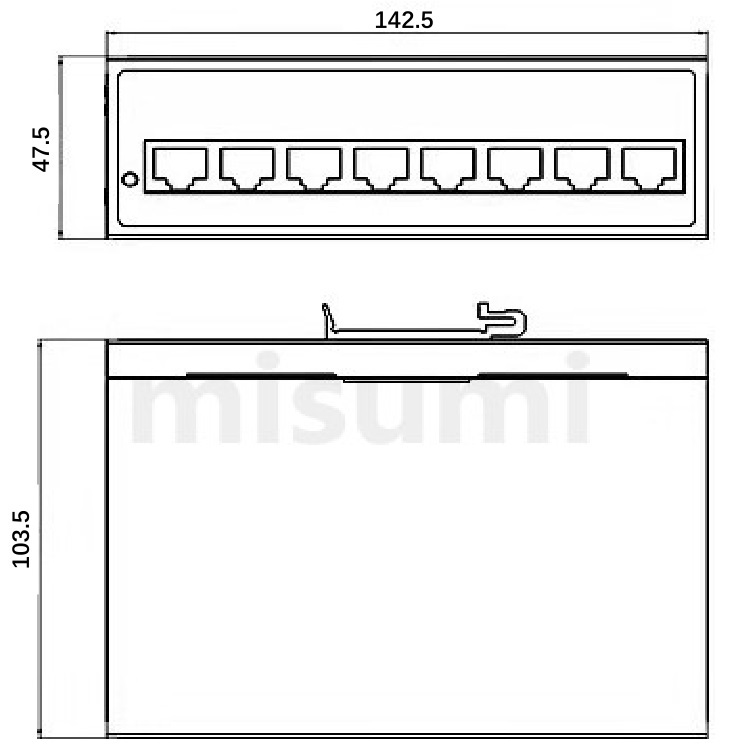

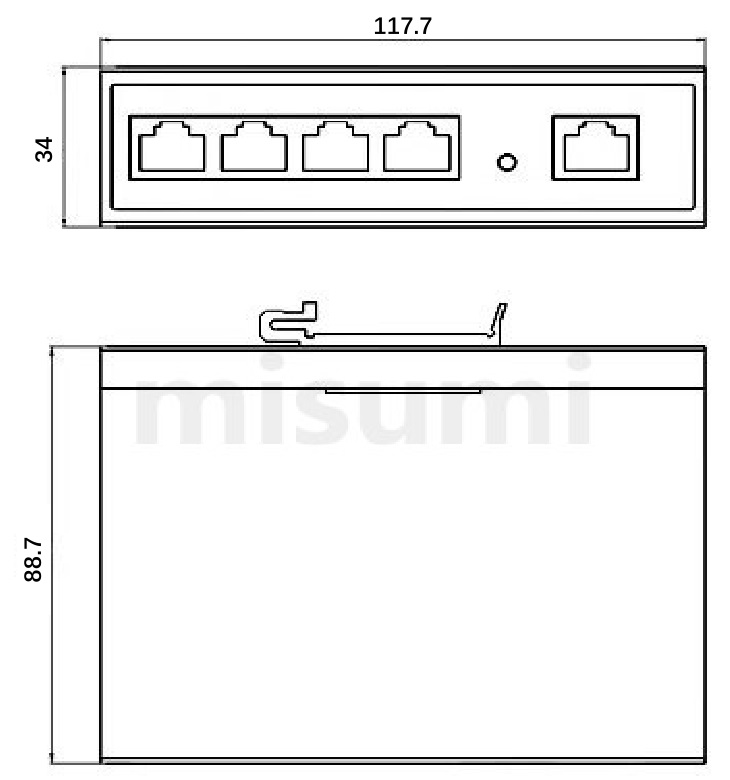

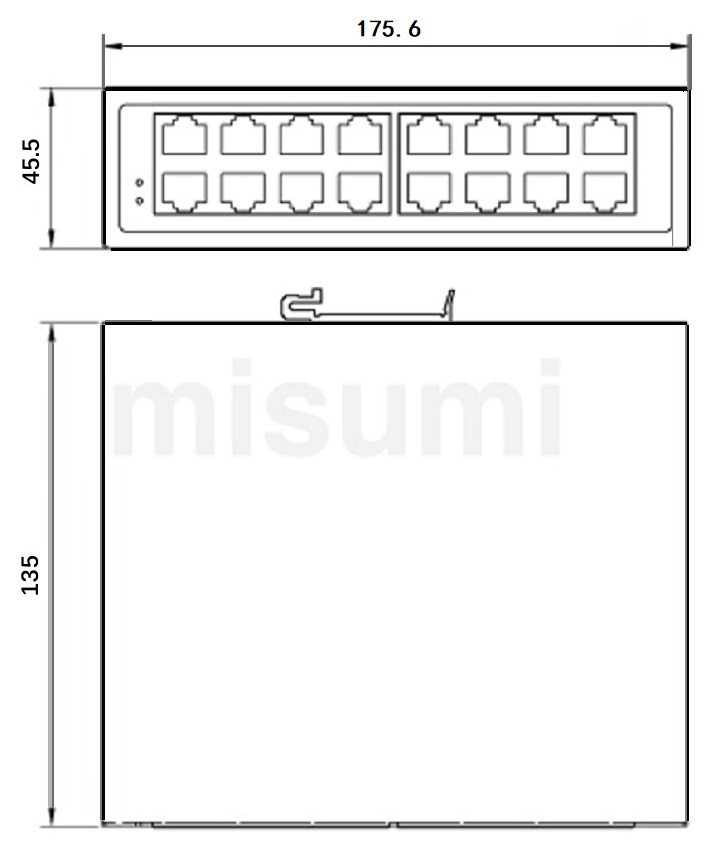

Dimensional of Switching hub Drawing
| Switching hub Part number | MES-G5RJ-ST | MES-G8RJ-ST | MES-G16RJ-ST |
| Dimension（mm) | 117.7*88.7*34 | 142.5*103.5*47.5 | 175.6*135*45.5 |
| Product Switching hub Drawings |  |  |  |
MaterialBody：Steel Alloy
Others：PVC and Others
Specification Table
| Part Number | Number of Ports | Communication Specification | Dimension (Unit：mm) | ||
| Length L | Width W | Heigth H | |||
| MES-G5RJ-ST | 5口 | 10/100/1000Mbps | 88.7 | 34 | 117.7 |
| MES-G8RJ-ST | 8口 | 103.5 | 47.5 | 142.5 | |
| MES-G16RJ-ST | 16口 | 135 | 45.5 | 175.6 | |
Specifications of Switching hub Overview
| Case Switching hub Material | Steel Alloy | |||||||
| Protection Rating | IP40 | |||||||
| Mounting Method | DIN Rail Mount | |||||||
| Power Supply | DC12 to 52V | |||||||
| Switching hub Wiring Method | Terminal Block Wire Connection | |||||||
| Applicable size range of wiring (mm2) | 6~12 | |||||||
| Switching hub Supported Size | CAT5e | |||||||
| Communication Speed | 10M/100M/1000Mbps | |||||||
| Mis-wiring Prevention | Provided | |||||||
| Temperature Range (Working/Storage) | -40℃~80℃ | |||||||
| Switching hub Power Alarm | Not Provided | |||||||
| CE/FCC | Not Provided | |||||||
| ROHS2.0 | Not Provided | |||||||
| Anti-surge | 4KV | |||||||
| Resistant to Lightning | 4KV | |||||||
| Anti-Static | 8KV | |||||||
| EMC | classA | |||||||
| Anti-Vibration Grade | Intensity 8 | |||||||
| Humidity | 5～95%RH (No Condensation) | |||||||
| Anti-Salt Spray Grade | Class 10 | |||||||
| Positive and Negative Pole Reverse Protection Function | 15 Seconds | |||||||
| Overload Protection | 3A | |||||||
Usage of Switching hub Method
Example of Switching hub Use
Related of Switching hub Products
 |  |  |
| CC-Link IE, EtherCAT Compatible CAT5e SF/UTP Stranded/Solid Conductor Double Shielded Free Length Network Cable | Switching hub Free Length Network Cable Cat5e SFTP (With double shield ··Single-Conductor) | Angle Network Cables CAT5e STP Shielded Stranded conductor |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| MES-G5RJ-ST |
| MES-G8RJ-ST |
| MES-G16RJ-ST |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Number of Ports |
|---|---|---|---|---|---|
1,304,359 VND | 1 Piece(s) | Available | Same day | 5 ports | |
1,532,422 VND | 1 Piece(s) | Available | Same day | 8 ports | |
4,010,640 VND | 1 Piece(s) | Available | 12 Day(s) | 16 ports |
Loading...Tải…
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
Frequently asked question (FAQ)FAQ
- Question:Question: What is the role of industrial switches?
- Answer:Answer: Industrial Ethernet switches are mainly used for real-time Ethernet data transmission in complex industrial environments. When Ethernet is designed, due to its use of Carrier Sense Multiple Access with Collision Detection (CSMA/CD mechanism), its reliability is greatly reduced when used in a complex industrial environment, which makes Ethernet unusable. The industrial Ethernet switch adopts the Store And Forward Switching method, and at the same time improves the Ethernet communication Speed, and the built-in intelligent alarm design monitors the network operation status, so that the reliable and stable operation of the Ethernet can be ensured in a harsh and dangerous industrial environment.
- Question:Question: What are the advantages of this product?
-
Answer:Answer:
・Use a steel alloy shell, which meets IP40 requirements;
・It can be stored in a wide temperature range of -40℃ to 80℃ and work correspondingly to ensure normal communication of the product;
・Surge protection up to 4KV at the work site to protect the surroundings equipment; Economic type price to meet your price reduction needs!
