[Clean & Pack]Fluororesin Plates

[Clean & Pack]Fluororesin Plates
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
26 Part Numbers Available

SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]

SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10]

SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,4,5,6,8,10]

SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

SH-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

SH-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

SH-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

SH-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

SH-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

SH-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

SH-PTFE-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]

SL-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]

SL-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10]

SL-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,4,5,6,8,10]

SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

SL-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]
SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
  • Order Qty :
  • Price :
    ---
  • Total Price :
    ---
  • Days to ship :
    ---

Select part number to Order Now/ Add to Cart

(i)

Caution

thận trọng

  • There is no discoloration or dimensional change due to cleaning.

CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

Two types of cleaning methods are available: "degreasing" and "precision cleaning." They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
Cleaning Method Product Part Number Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Use Case
Degreasing SL-□□ Anti-rust packing Removal of organic stains General environment Regular assembly process
Post battery assembly process
Precision cleaning SH-□□ Degassing double packing Removal of organic stains
Removal of contamination and dusts		 Clean environment
(Class 10 to 1,000)		 Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process

Fluororesin can be used for sheet packing and electric insulator since it has excellent impact strength as well as chemical stability and electric property.

■ Standard Type

[ ! ]A ≥ B

Finish4 SidesUpper-Lower Surface
Machining MethodSurface textureMachining MethodSurface texture
Circular sawingCircular sawingMaterial
[ ! ] The roughness values ​​of the material surface are for reference only.

■ Hole Machined Type

2H

2HL

4H

6H

Nominal Dia.b (Minimum Value)
3 to 102.5
Hole Machining Details
N (Through Hole)Z (Counterbored Hole)N (Through Hole) / Z (Counterbored Hole) DetailsM (Threaded Insert)■Table 1 M (Thread Insert) Details
Bolt
Nominal Dia.		3456810
d3.54.55.56.5911
d16.589.51114—
h45679—

Ordering Code (Example) M4-L6
[ ! ]L ≤ T－1
[ ! ] When L + 5 < T, drilled holes will be blind ones.
Bolt
Nominal Dia.		3456810
d3.54.55.56.5911
L3456810
4.567.591215
6810121620
Type[M] Material[M] GradeColorOperating Ambient TemperatureCleaning Method
Cleaning MethodCleaning EnvironmentPackaging TypePacking Environment
SL-PTFEPTFE ResinStandardWhite－40 to 250°CDegreasingGeneral environmentSingle packingGeneral environment
SH-PTFEPrecision cleaningClass 1,000Degassing double packingClass 10
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the specification table.

Specification Table

■ Standard Type
Part Number—A—B—T
SL-PTFE—100—50—5
■Hole Machined Type
Part Number—A—B—T—F—G—Screw Nominal Dia.—L
SL-PTFE4H—200—200—10—F180—G180—Z5
SH-PTFE2H—230—130—25—F80—G50—M8—L12
• T Dimension Tolerance, Rate of Camber and Torsion
TT Dimension ToleranceRates of Camber and Torsion
per 1,000 mm
PTFE
1±0.23.0% or less
2
3±0.4
5
80 to +1.01.5% or less
10
150 to +2.01.0% or Less
20
25
30
• Dimension Tolerance of A and B: ±1.0



■ Standard Type
Part NumberABT
Type1 mm IncrementsSelection
(Standard)20 to 50020 to 5001·2·3
SL-PTFE5·8·10·15
SH-PTFE20·25·30
[ ! ] T dimension 1 to 5 have large camber.
■ Hole Machined Type
Part NumberABTFGHole Machined Type Screw Nominal Dia. Selection
Through HoleCounterbore HoleThreaded Insert
TypeNumber of Holes1 mm IncrementsSelection0.5 mm IncrementsNZML
(Standard)2H(Horizontal)20 to 50020 to 5001·2·36 to 491.54.5 to 495.53———
SL-PTFE2HL(Vertical)(2H·4H)(2H)4
SH-PTFE4H54.5 to 495.5 (2HL) 5—34    Select from Table 1
 6H86 to 245.56 to 491.56345  3456
  10(6H)(2HL·4H·6H)8 456 34568
  15·20·25·30  10 45683456810
[!] Dimension F Specification Range – 2H/4H type selection: d (d1) + 2.5 ≤ F ≤ A - d (d1) - 5; for 2HL: d (d1)/2 + 2.5 ≤ F ≤ A - d (d1)/2 - 2.5; for 6H: d (d1) + 2.5 ≤ F ≤ (A - d (d1) - 5)/2 is required.
[!]Dimension G Specification Range – 2H type selection: d (d1)/2 + 2.5 ≤ G ≤ B - d (d1)/2 - 2.5; for 2HL, 4H and 6H: d (d1) + 2.5 ≤ G ≤ B - d (d1) - 5 is required.
(d for through hole and threaded insert, d1 for counterbore)
[ ! ] For Hole Machined Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).
[ ! ] SL-PTFE and SH-PTFE may have camber as it is a soft material.


Alterations

AlterationsCorner Radius MachiningCorner CutHole Position from LeftHole Position from Bottom
CodeCRA·CRB·CRC·CRDCCA·CCB·CCC·CCDXCYC
Spec.Adds radius machining to any corner.
R = 5 mm Increments [!] 10 ≤ A (B) - R (2R)
[ ! ]5 ≤ CRA·CRB·CRC·CRD ≤ 100

Ordering code (Example) Adds R10 at the corner of A and C
CRA10－CRC10

[ ! ] Available for Standard Type only
 		Any corner can be cut.
5 ≤ corner cut ≤ 50
10 ≤ A - C (2C) or 10 ≤ B - C (2C)
5 mm Increments
Ordering Code
Example: When the corners of A and D are cut by C5 >> CCA5 - CCD5
[ ! ] Available for Standard Type only		XC = 0.5 mm Increments
" ! " (2H, 4H Type)
d (d1 )/2 + 2.5 ≤ XC ≤ A - F - d (d1 )/2 - 2.5
" ! " (6H Type)
d (d1 )/2 + 2.5 ≤ XC ≤ A - 2F - d (d1 )/2 - 2.5		YC = 0.5 mm Increments
[ ! ] d (d1 )/2 + 2.5 ≤ YC ≤ B - G - d (d1 )/2 - 2.5
[NG] Not available for 2H Type


Cleaning Process
· Degreasing (Part Number: SL-□□)

Working Environment: General environment


IPA Cleaning
Wash with pure water (10 MΩ·cm)
after high-pressure water
jet cleaning (Ro water)
Use clean air blow
Single Packing
· Precision cleaning (Part Number: SH-□□)

Working Environment: General environment



Working Environment: Class 1,000



Working Environment: Class 10


IPA Cleaning
Wash with pure water (10 MΩ·cm)
after high-pressure water
jet cleaning (Ro water)
Use clean air blow
Use nitrogen blow
Degassing double packing
Packaging Example

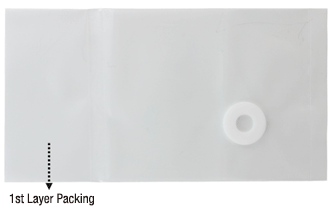

Degreasing (Part Number: SL-□□)

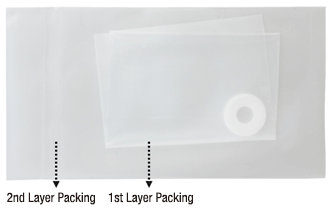

 		Precision Cleaning (Part Number: SH-□□)

[ ! ] Both the first and second layer packaging are degassed.
Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method

Product Part Number

Packaging Type

Effects Compared to Uncleaned Product

Environment (Standard)

Use Case and Process

DegreasingSL-□□Anti-rust packingRemoval of organic stainsGeneral environmentRegular assembly process
Post battery assembly process
Precision cleaningSH-□□Degassing double packingRemoval of organic stains
Removal of contamination and dusts		Clean environment
(Class 10 to 1,000)		Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process

Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.    Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...Tải…
30
45
60
  1. 1
Part Number
SH-PTFE2H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,​4,​5,​6,​8,​10]
SH-PTFE2H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,​4,​5,​6,​8,​10]
SH-PTFE2H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-M[3,​4,​5,​6,​8,​10]
SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-N[3,​4,​5,​6,​8,​10]
SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SH-PTFE4H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,​4,​5,​6,​8,​10]
SH-PTFE4H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,​4,​5,​6,​8,​10]
SH-PTFE4H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SH-PTFE6H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,​4,​5,​6,​8,​10]
SH-PTFE6H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,​4,​5,​6,​8,​10]
SH-PTFE6H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SH-PTFE-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]
SL-PTFE2H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,​4,​5,​6,​8,​10]
SL-PTFE2H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,​4,​5,​6,​8,​10]
SL-PTFE2H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-M[3,​4,​5,​6,​8,​10]
SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-N[3,​4,​5,​6,​8,​10]
SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SL-PTFE4H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,​4,​5,​6,​8,​10]
SL-PTFE4H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,​4,​5,​6,​8,​10]
SL-PTFE4H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SL-PTFE6H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,​4,​5,​6,​8,​10]
SL-PTFE6H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,​4,​5,​6,​8,​10]
SL-PTFE6H-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,​4,​5,​6,​8,​10]
SL-PTFE-[20-500/1]-[20-500/1]-[1,​2,​3,​5,​8,​10,​15,​20,​25,​30]
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipSố ngày giao hàngHole Drilling Length, A Dimension
(mm) 		Width, B Dimension
(mm) 		Plate Thickness, T Dimension
(mm) 		Through Hole, Bolt Nominal Diameter Counterbore Hole, Bolt Nominal Diameter Threaded Insert, Bolt Nominal Diameter A Side Pitch, F Dimension
(mm) 		B Side Pitch, G Dimension
(mm) 		Cleaning Method

-

1 Piece(s) 11 Day(s) or more 2H20 ～ 50020 ～ 5001 ～ 30--3 ～ 106 ～ 491.54.5 ～ 495.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 2H20 ～ 50020 ～ 5001 ～ 303 ～ 10--6 ～ 491.54.5 ～ 495.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 2H20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-6 ～ 491.54.5 ～ 495.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 2HL20 ～ 50020 ～ 5001 ～ 30--3 ～ 104.5 ～ 495.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 2HL20 ～ 50020 ～ 5001 ～ 303 ～ 10--4.5 ～ 495.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 2HL20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-4.5 ～ 495.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 4H20 ～ 50020 ～ 5001 ～ 30--3 ～ 106 ～ 491.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 4H20 ～ 50020 ～ 5001 ～ 303 ～ 10--6 ～ 491.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 4H20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-6 ～ 491.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 6H20 ～ 50020 ～ 5001 ～ 30--3 ～ 106 ～ 245.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 6H20 ～ 50020 ～ 5001 ～ 303 ～ 10--6 ～ 245.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 6H20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-6 ～ 245.56 ～ 491.5Precision Cleaning

-

1 Piece(s) 7 Day(s) or more No Drilling Alteration20 ～ 50020 ～ 5001 ～ 30-----Precision Cleaning

-

1 Piece(s) 11 Day(s) or more 2H20 ～ 50020 ～ 5001 ～ 30--3 ～ 106 ～ 491.54.5 ～ 495.5Degreasing

-

1 Piece(s) 11 Day(s) or more 2H20 ～ 50020 ～ 5001 ～ 303 ～ 10--6 ～ 491.54.5 ～ 495.5Degreasing

-

1 Piece(s) 11 Day(s) or more 2H20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-6 ～ 491.54.5 ～ 495.5Degreasing

-

1 Piece(s) 11 Day(s) or more 2HL20 ～ 50020 ～ 5001 ～ 30--3 ～ 104.5 ～ 495.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 2HL20 ～ 50020 ～ 5001 ～ 303 ～ 10--4.5 ～ 495.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 2HL20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-4.5 ～ 495.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 4H20 ～ 50020 ～ 5001 ～ 30--3 ～ 106 ～ 491.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 4H20 ～ 50020 ～ 5001 ～ 303 ～ 10--6 ～ 491.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 4H20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-6 ～ 491.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 6H20 ～ 50020 ～ 5001 ～ 30--3 ～ 106 ～ 245.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 6H20 ～ 50020 ～ 5001 ～ 303 ～ 10--6 ～ 245.56 ～ 491.5Degreasing

-

1 Piece(s) 11 Day(s) or more 6H20 ～ 50020 ～ 5001 ～ 30-3 ～ 10-6 ～ 245.56 ～ 491.5Degreasing

-

1 Piece(s) 7 Day(s) or more No Drilling Alteration20 ～ 50020 ～ 5001 ～ 30-----Degreasing

Loading...Tải…

  1. 1

Basic InformationThông tin cơ bản

Material Fluororesin (Fluoropolymer, PTFE) Environmental Compliance RoHS compliant (10 substances) Grade Standard
Color White/Translucent White Finishing Method Circular Saw Cutting Material Name Fluororesin

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

  • Tel:Số điện thoại:0222-361-1555
  • Fax:Số Fax:0222-361-2555
  • InquiryYêu cầu

MISUMI APP

MISUMI APP QR

Install MISUMI APP

Mobile View Xem trên điện thoại

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

online.gov.vn

Copyright © MISUMI Corporation All Rights Reserved.
