Product DetailSpecification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước
-
Thread Nominal (M)
-
Properties / applications
- Clean washing
- Low Dust Generation
- Vacuum
- Corrosion resistance / chemical resistance
- Insulation Property
- Non-Magnetic
- Heat-Resistance
-
Material
- Resin
- Resin
-
Material Details
- PEEK
- PPS
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
Pitch(mm)
- 0.5
- 0.7
- 0.8
- 1
- 1.25
-
type
- SH-PEKN
- SH-PPSN
- SL-PEKN
- SL-PPSN
-
CADCAD
- 2D
- 3D
Days to ShipSố ngày giao hàng
-
- Alltất cả các
- 6 Day(s) or Less
Specify AlterationsChỉ định thay đổi
[Clean & Pack]Plastic Nuts - PEEK / PPS
![[Clean & Pack]Plastic Nuts - PEEK / PPS](http://vn.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311032839_001.jpg?$product_main$)
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 55,949VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
(i)
Caution
thận trọng
- There is no discoloration or dimensional change due to cleaning.
Similar Products
Product DetailProduct Description
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
| Cleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case |
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
PEEK excels in heat resistance, abrasion resistance, flame resistance and hydrolysis resistance
| Type | [M] Material | Cleaning Method | |||
| Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-PPSN | PPS (Polyphenylenesulfide) | Degreasing | General environment | Single packing | General environment |
| SH-PPSN | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |
| SL-PEKN | PEEK (Polyetheretherketone) | Degreasing | General environment | Single packing | General environment |
| SH-PEKN | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the
specification table.Specification Table
| Part Number |
| SL-PPSN3 |
| Part Number | B | (e) | T | |
| Type | M | |||
| SL-PPSN | 3 | 5.5 | 6.4 | 2.4 |
| SH-PPSN | 4 | 7 | 8.1 | 3.2 |
| SL-PEKN | 5 | 8 | 9.2 | 4 |
| SH-PEKN | 6 | 10 | 11.5 | 5 |
| 8 | 13 | 15 | 6.5 | |
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

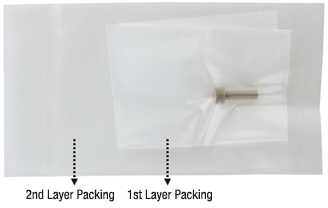

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| SH-PEKN3 |
| SH-PEKN4 |
| SH-PEKN5 |
| SH-PEKN6 |
| SH-PEKN8 |
| SH-PPSN3 |
| SH-PPSN4 |
| SH-PPSN5 |
| SH-PPSN6 |
| SH-PPSN8 |
| SL-PEKN3 |
| SL-PEKN4 |
| SL-PEKN5 |
| SL-PEKN6 |
| SL-PEKN8 |
| SL-PPSN3 |
| SL-PPSN4 |
| SL-PPSN5 |
| SL-PPSN6 |
| SL-PPSN8 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Thread Nominal (M) | Properties / applications | Material | Material Details | Cleaning Method | Pitch (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
94,534 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Precision Cleaning | 0.5 | |
96,463 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Precision Cleaning | 0.7 | |
98,392 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Precision Cleaning | 0.8 | |
113,826 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Precision Cleaning | 1 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Precision Cleaning | 1.25 | |
92,605 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Precision Cleaning | 0.5 | |
94,534 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Precision Cleaning | 0.7 | |
94,534 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Precision Cleaning | 0.8 | |
104,180 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Precision Cleaning | 1 | |
113,826 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Precision Cleaning | 1.25 | |
55,949 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Degreasing | 0.5 | |
67,524 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Degreasing | 0.7 | |
69,453 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Degreasing | 0.8 | |
84,887 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Degreasing | 1 | |
96,463 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PEEK | PEEK | Degreasing | 1.25 | |
63,666 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Degreasing | 0.5 | |
65,595 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Degreasing | 0.7 | |
65,595 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Degreasing | 0.8 | |
75,241 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Degreasing | 1 | |
84,887 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | [Resin] PPS | PPS | Degreasing | 1.25 |
Loading...Tải…
Specifications / Overview
·The surface colors of plastic nuts may change somewhat depending on production lot and other conditions.
·Sometimes black spots may be seen on the surface, which does not affect its performance.
·PPS - Polyphenylenesulfide (Polyphenylenesulfide)
PPS is a crystalline super engineered plastic. It has excellent heat resistance, and does not deteriorate in physical properties even when it is used for long durations in high temperature atmosphere. In addition, it excels in chemical resistance, mechanical characteristics, electrical properties and dimensional stability.
PEEK is semicrystalline super engineered plastic with the highest performance. It has the highest chemical resistance among all engineered plastics. The only generally used chemical that can dissolve PEEK is concentrated sulfuric acid. PEEK also excels in heat resistance, abrasion resistance, flame resistance and hydrolysis resistance.
Basic InformationThông tin cơ bản
| Basic Shape | Hex Nut | Environmentally Friendly | RoHS compliant (10 substances) | Surface Treatment | N/A |
|---|---|---|---|---|---|
| Thread Type | Metric Coarse | Application / Functions | General | Unit of Purchase | Sold Individually (No Min. Purchase) |
| Surface Treatment (Details) | N/A | Hex Nut Standard | Class 1 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
