Product DetailSpecification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước
-
Nominal of Thread (M)
-
Properties / applications
- Clean washing
- Low Dust Generation
- Corrosion resistance / chemical resistance
- Insulation Property
- Non-Magnetic
- Heat-Resistance
-
Length L (mm)
-
Pitch(mm)
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
D Part Dia.(Ø)
- 5.5
- 7
- 8.5
- 10
- 13
- 16
- 18
-
Wrench Flats B(mm)
-
type
- SH-PVDB
- SL-PVDB
-
CADCAD
- 2D
- 3D
Days to ShipSố ngày giao hàng
-
- Alltất cả các
- 6 Day(s) or Less
Specify AlterationsChỉ định thay đổi
[Clean & Pack]Plastic Hex Socket Head Cap Bolt, PVDF
![[Clean & Pack]Plastic Hex Socket Head Cap Bolt, PVDF](http://vn.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311031489_001.jpg?$product_main$)
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 125,402VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
(i)
Caution
thận trọng
- There is no discoloration or dimensional change due to cleaning.
Similar Products
Product DetailProduct Description
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
| Cleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case |
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
[Features]
·Polyvinylidene fluoride resin is a well-balanced engineering plastic with excellent performance as a fluoropolymer and moldability comparable to general purpose resins.
· It has excellent chemical and weather resistance, and is used in a variety of fields, including electronic materials such as binders for lithium-ion batteries, fishing lines, strings for various stringed instruments, and valves and linings for electrolysis.
·Continuous Use Temperature 150°C
·Combustibility UL94 V-0
| Type | [M] Material | Cleaning Method | |||
| Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-PVDB | PVDF (Polyvinylidene fluoride resin) | Degreasing | General environment | Single packing | General environment |
| SH-PVDB | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |
[ ! ] See the
details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.Specification Table
| Part Number |
| SL-PVDB3－6 |
| M × P | D | H | B |
| 3 × 0.5 | 5.5 | 3 | 2.5 |
| 4 × 0.7 | 7 | 4 | 3 |
| 5 × 0.8 | 8.5 | 5 | 4 |
| 6 × 1.0 | 10 | 6 | 5 |
| 8 × 1.25 | 13 | 8 | 6 |
| 10 × 1.5 | 16 | 10 | 8 |
| 12 × 1.75 | 18 | 12 | 10 |
| Part Number | |||
| Type | M | — | L |
| SL-PVDB SH-PVDB | 3 | — | 5 |
| 6 | |||
| 8 | |||
| 10 | |||
| 12 | |||
| 15 | |||
| 4 | — | 5 | |
| 6 | |||
| 8 | |||
| 10 | |||
| 12 | |||
| 15 | |||
| 20 | |||
| 5 | — | 10 | |
| 12 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| 6 | — | 10 | |
| 12 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| 40 | |||
| 8 | — | 10 | |
| 12 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| 40 | |||
| 10 | — | 15 | |
| 20 | |||
| 25 | |||
| 30 | |||
| 35 | |||
| 40 | |||
| 12 | — | 20 | |
| 25 | |||
| 30 | |||
| 35 | |||
| 40 | |||
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

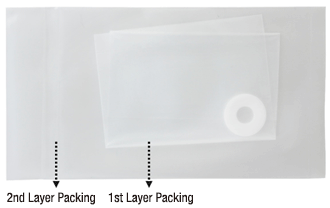

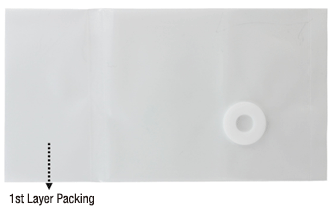

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Nominal of Thread (M) | Properties / applications | Length L (mm) | Pitch (mm) | Cleaning Method | D Part Dia. (Ø) | Wrench Flats B (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 5 | 0.5 | Precision Cleaning | 5.5 | 2.5 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 6 | 0.5 | Precision Cleaning | 5.5 | 2.5 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 8 | 0.5 | Precision Cleaning | 5.5 | 2.5 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 0.5 | Precision Cleaning | 5.5 | 2.5 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 0.5 | Precision Cleaning | 5.5 | 2.5 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 0.5 | Precision Cleaning | 5.5 | 2.5 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 5 | 0.7 | Precision Cleaning | 7 | 3 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 6 | 0.7 | Precision Cleaning | 7 | 3 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 8 | 0.7 | Precision Cleaning | 7 | 3 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 0.7 | Precision Cleaning | 7 | 3 | |
173,633 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 0.7 | Precision Cleaning | 7 | 3 | |
175,563 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 0.7 | Precision Cleaning | 7 | 3 | |
175,563 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 0.7 | Precision Cleaning | 7 | 3 | |
175,563 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 0.8 | Precision Cleaning | 8.5 | 4 | |
177,492 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 0.8 | Precision Cleaning | 8.5 | 4 | |
177,492 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 0.8 | Precision Cleaning | 8.5 | 4 | |
177,492 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 0.8 | Precision Cleaning | 8.5 | 4 | |
179,421 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 25 | 0.8 | Precision Cleaning | 8.5 | 4 | |
179,421 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 30 | 0.8 | Precision Cleaning | 8.5 | 4 | |
181,350 VND | 1 Piece(s) | Available | 6 Day(s) or more | 5 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 35 | 0.8 | Precision Cleaning | 8.5 | 4 | |
179,421 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 1 | Precision Cleaning | 10 | 5 | |
179,421 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 1 | Precision Cleaning | 10 | 5 | |
179,421 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 1 | Precision Cleaning | 10 | 5 | |
181,350 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 1 | Precision Cleaning | 10 | 5 | |
183,280 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 25 | 1 | Precision Cleaning | 10 | 5 | |
183,280 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 30 | 1 | Precision Cleaning | 10 | 5 | |
185,209 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 35 | 1 | Precision Cleaning | 10 | 5 | |
187,138 VND | 1 Piece(s) | Available | 6 Day(s) or more | 6 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 40 | 1 | Precision Cleaning | 10 | 5 | |
192,926 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 1.25 | Precision Cleaning | 13 | 6 | |
192,926 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 1.25 | Precision Cleaning | 13 | 6 | |
192,926 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 1.25 | Precision Cleaning | 13 | 6 | |
192,926 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 1.25 | Precision Cleaning | 13 | 6 | |
192,926 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 25 | 1.25 | Precision Cleaning | 13 | 6 | |
198,714 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 30 | 1.25 | Precision Cleaning | 13 | 6 | |
198,714 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 35 | 1.25 | Precision Cleaning | 13 | 6 | |
198,714 VND | 1 Piece(s) | Available | 6 Day(s) or more | 8 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 40 | 1.25 | Precision Cleaning | 13 | 6 | |
192,926 VND | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 1.5 | Precision Cleaning | 16 | 8 | |
194,855 VND | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 1.5 | Precision Cleaning | 16 | 8 | |
198,714 VND | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 25 | 1.5 | Precision Cleaning | 16 | 8 | |
202,572 VND | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 30 | 1.5 | Precision Cleaning | 16 | 8 | |
204,502 VND | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 35 | 1.5 | Precision Cleaning | 16 | 8 | |
212,219 VND | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 40 | 1.5 | Precision Cleaning | 16 | 8 | |
206,431 VND | 1 Piece(s) | Available | 6 Day(s) or more | 12 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 1.75 | Precision Cleaning | 18 | 10 | |
210,289 VND | 1 Piece(s) | Available | 6 Day(s) or more | 12 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 25 | 1.75 | Precision Cleaning | 18 | 10 | |
212,219 VND | 1 Piece(s) | Available | 6 Day(s) or more | 12 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 30 | 1.75 | Precision Cleaning | 18 | 10 | |
221,865 VND | 1 Piece(s) | Available | 6 Day(s) or more | 12 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 35 | 1.75 | Precision Cleaning | 18 | 10 | |
225,723 VND | 1 Piece(s) | Available | 6 Day(s) or more | 12 | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 40 | 1.75 | Precision Cleaning | 18 | 10 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 5 | 0.5 | Degreasing | 5.5 | 2.5 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 6 | 0.5 | Degreasing | 5.5 | 2.5 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 8 | 0.5 | Degreasing | 5.5 | 2.5 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 0.5 | Degreasing | 5.5 | 2.5 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 0.5 | Degreasing | 5.5 | 2.5 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 3 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 0.5 | Degreasing | 5.5 | 2.5 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 5 | 0.7 | Degreasing | 7 | 3 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 6 | 0.7 | Degreasing | 7 | 3 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 8 | 0.7 | Degreasing | 7 | 3 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 10 | 0.7 | Degreasing | 7 | 3 | |
125,402 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 12 | 0.7 | Degreasing | 7 | 3 | |
127,331 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 15 | 0.7 | Degreasing | 7 | 3 | |
127,331 VND | 1 Piece(s) | Available | 6 Day(s) or more | 4 | Clean washing / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance | 20 | 0.7 | Degreasing | 7 | 3 |
Loading...Tải…
Specifications / Overview
| M | Torsional Breaking Torque (N⋅m) | Tensile Breaking Load (N) |
| 3 | 0.11 | 227 |
| 4 | 0.26 | 429 |
| 5 | 0.44 | 688 |
| 6 | 0.81 | 960 |
| 8 | 1.56 | 1803 |
| 10 | 3.16 | 2824 |
| 12 | 5.73 | 4249 |
· Sometimes black spots on the surface may be seen, which does not affect its performance.
· Please use in combination with a nut made of the same material as the deviation in pitch of the screw will occur during molding.
· If a nut is not used, the fitting with the tapped screw should be 20 mm or less.
·The remaining gate at the tip of the screw is 5% or less of L.
·Use a torque driver and torque wrench for tightening. The recommended tightening torque is 50% of the breakage torque value in use.
· Heat and chemical resistances vary depending on the condition of use. Be sure to test the product before use under expected application conditions.
· The color may change depending on production lot and other conditions.
Basic InformationThông tin cơ bản
| Environmental Compliance | RoHS compliant (10 substances) | Detailed Shape | Standard | Drive Type | Not Provided |
|---|---|---|---|---|---|
| Basic Shape | Standard (Round) | Material | Plastic | Thread Type | Metric, Coarse |
| Sales Unit | Sold Individually (No Min. Purchase) | Plastic Material | PVDF | Additional Shape | Standard |
| Material Certificate | Available | Material Certificate: Materials | PVDF (Polyvinylidene fluoride resin) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
