[Clean & Pack]Plastic Hex Socket Head Cap Screws - PEEK / PPS, Single Item / Small Box【1-500 Pieces Per Package】

Volume Discount

Brand :

Part Number :

SH-BOX-PEKB3-8

SH-BOX-PEKB3-10

SH-BOX-PEKB3-20

SH-BOX-PEKB4-6

SH-BOX-PEKB4-8

SH-BOX-PEKB4-10

SH-BOX-PEKB4-12

SH-BOX-PEKB4-15

SH-BOX-PEKB4-20

SH-BOX-PEKB5-8

SH-BOX-PEKB5-10

SH-BOX-PEKB5-12

SH-BOX-PEKB5-15

SH-BOX-PEKB5-25

SH-BOX-PEKB5-30

SH-BOX-PEKB6-10

SH-BOX-PEKB6-12

SH-BOX-PEKB6-15

SH-BOX-PEKB6-20

SH-BOX-PEKB6-25

SH-BOX-PEKB3-8

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)
Caution

thận trọng

There is no discoloration or dimensional change due to cleaning.
Sometimes black spots on the surface may be seen, which does not affect its performance.

Product Description

Two types of cleaning methods are available: "degreasing" and "precision cleaning." They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.

Cleaning Method	Product Part Number	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Use Case
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Regular assembly process
					Post battery assembly process
Precision cleaning	SH-□□	Degassing double packing	Removal of organic stains Removal of contamination and dusts	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process

Screw

* Incomplete Threaded Portion: Approximately U-Shaped screw threads (Reference Value)

Type		[M] Material	Color	Cleaning Method
Single Item	Box	[M] Material	Color	Cleaning Method	Cleaning Environment	Packaging Type	Packing Environment
SL-PPSB	SL-BOX-PPSB	PPS (Polyphenylenesulfide)		Degreasing	General environment	Single packing	General environment
SH-PPSB	SH-BOX-PPSB	PPS (Polyphenylenesulfide)		Precision cleaning	Class 1,000	Degassing double packing	Class 10
SL-PEKB	SL-BOX-PEKB	PEEK (Polyetheretherketone)		Degreasing	General environment	Single packing	General environment
SH-PEKB	SH-BOX-PEKB	PEEK (Polyetheretherketone)		Precision cleaning	Class 1,000	Degassing double packing	Class 10

Materials and dimensions are based on manufacturer standards (JIS Standard Not Compliant)
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the

specification table.

Specification Table

Part Number

SL-PPSB3−10

■Plastic Hex Socket Head Cap Screws

Part Number		M × P	A	E	B
Type	M−L	M × P	A	E	B
SL-PPSB SH-PPSB SL-PEKB SH-PEKB SL-BOX-PPSB SH-BOX-PPSB SL-BOX-PEKB SH-BOX-PEKB	3− 6	3 × 0.5	5.5	3	2.5
	8	3 × 0.5	5.5	3	2.5
	10	3 × 0.5	5.5	3	2.5
	12	3 × 0.5	5.5	3	2.5
	15	3 × 0.5	5.5	3	2.5
	20	3 × 0.5	5.5	3	2.5
	4− 6	4 × 0.7	7	4	3
	8	4 × 0.7	7	4	3
	10	4 × 0.7	7	4	3
	12	4 × 0.7	7	4	3
	15	4 × 0.7	7	4	3
	20	4 × 0.7	7	4	3
	5− 8	5 × 0.8	8.5	5	4
	10	5 × 0.8	8.5	5	4
	12	5 × 0.8	8.5	5	4
	15	5 × 0.8	8.5	5	4
	20	5 × 0.8	8.5	5	4
	25	5 × 0.8	8.5	5	4
	30	5 × 0.8	8.5	5	4
	6−10	6 × 1.0	10	6	5
	12	6 × 1.0	10	6	5
	15	6 × 1.0	10	6	5
	20	6 × 1.0	10	6	5
	25	6 × 1.0	10	6	5
	30	6 × 1.0	10	6	5
	40	6 × 1.0	10	6	5
	8−15	8 × 1.25	13	8	6
	20	8 × 1.25	13	8	6
	25	8 × 1.25	13	8	6
	30	8 × 1.25	13	8	6
	40	8 × 1.25	13	8	6

Product Specifications

Material	Features
PPS - Polyphenylenesulfide (Polyphenylenesulfide)	PPS is a crystalline super engineered plastic. It has excellent heat resistance, and does not deteriorate in physical properties even when it is used for long durations in high temperature atmosphere. It excels in chemical resistance, mechanical characteristics, electrical properties and dimensional stability.
PEEK - Polyetheretherketone (Polyetheretherketone)	PEEK is semicrystalline super engineered plastic with the highest performance. It has the highest chemical resistance among all engineered plastics. The only generally used chemical that can dissolve PEEK is concentrated sulfuric acid. PEEK also excels in heat resistance, abrasion resistance, flame resistance and hydrolysis resistance.

Cleaning Process
· Degreasing (Part Number: SL-□□)

Working Environment: General environment
IPA Cleaning		Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)		Use clean air blow		Single Packing

· Precision cleaning (Part Number: SH-□□)

Working Environment: General environment				Working Environment: Class 1,000				Working Environment: Class 10
IPA Cleaning		Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)		Use clean air blow		Use nitrogen blow		Degassing double packing

Packaging Example

Degreasing (Part Number: SL-□□)

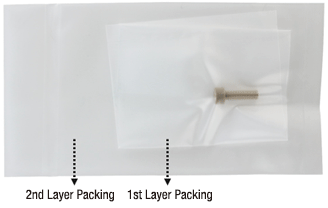

Precision Cleaning (Part Number: SH-□□)

[ ! ] Both the first and second layer packaging are degassed.

Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method	Product Part Number	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Use Case and Process
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Regular assembly process
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Post battery assembly process
Precision cleaning	SH-□□	Degassing double packing	Removal of organic stains Removal of contamination and dusts	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.

Loading...Tải…

: 30; 45; 60

Part Number
SH-BOX-PEKB3-8
SH-BOX-PEKB3-10
SH-BOX-PEKB3-20
SH-BOX-PEKB4-6
SH-BOX-PEKB4-8
SH-BOX-PEKB4-10
SH-BOX-PEKB4-12
SH-BOX-PEKB4-15
SH-BOX-PEKB4-20
SH-BOX-PEKB5-8
SH-BOX-PEKB5-10
SH-BOX-PEKB5-12
SH-BOX-PEKB5-15
SH-BOX-PEKB5-25
SH-BOX-PEKB5-30
SH-BOX-PEKB6-10
SH-BOX-PEKB6-12
SH-BOX-PEKB6-15
SH-BOX-PEKB6-20
SH-BOX-PEKB6-25
SH-BOX-PEKB6-30
SH-BOX-PEKB6-40
SH-BOX-PEKB8-20
SH-BOX-PEKB8-25
SH-BOX-PEKB8-30
SH-BOX-PEKB8-40
SH-BOX-PPSB3-8
SH-BOX-PPSB3-10
SH-BOX-PPSB3-12
SH-BOX-PPSB3-15
SH-BOX-PPSB3-20
SH-BOX-PPSB4-6
SH-BOX-PPSB4-8
SH-BOX-PPSB4-10
SH-BOX-PPSB4-12
SH-BOX-PPSB4-15
SH-BOX-PPSB4-20
SH-BOX-PPSB5-8
SH-BOX-PPSB5-10
SH-BOX-PPSB5-12
SH-BOX-PPSB5-15
SH-BOX-PPSB5-20
SH-BOX-PPSB5-25
SH-BOX-PPSB5-30
SH-BOX-PPSB6-10
SH-BOX-PPSB6-12
SH-BOX-PPSB6-20
SH-BOX-PPSB6-25
SH-BOX-PPSB6-30
SH-BOX-PPSB6-40
SH-BOX-PPSB8-15
SH-BOX-PPSB8-20
SH-BOX-PPSB8-25
SH-BOX-PPSB8-30
SH-BOX-PPSB8-40
SH-PEKB3-8
SH-PEKB3-10
SH-PEKB3-12
SH-PEKB3-15
SH-PEKB3-20

Price	Minimum Order Qty.	Number of pc(s). included in pkg.Number of pc(s). included in pkg.	Volume Discount	Days to ShipSố ngày giao hàng	Nominal of Thread (M)	Properties / applications	Length L (mm)	Basic Shape	Sales Unit	Plastic Material	Pitch (mm)	Cleaning Method	Material Certificate: Materials	Screw M Diameter	Size (X Notation)	Size (-Notation)
40,958,199 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	-	Box, Pkg.	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X8	M3-8
16,456,592 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X10	M3-10
17,976,849 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X20	M3-20
16,935,048 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	6	-	Box, Pkg.	PEEK	0.7	Precision Cleaning	PEEK (Polyetheretherketone)	M4	M4X6	M4-6
17,050,804 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	-	Box, Pkg.	PEEK	0.7	Precision Cleaning	PEEK (Polyetheretherketone)	M4	M4X8	M4-8
17,124,116 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PEEK	0.7	Precision Cleaning	PEEK (Polyetheretherketone)	M4	M4X10	M4-10
17,320,900 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PEEK	0.7	Precision Cleaning	PEEK (Polyetheretherketone)	M4	M4X12	M4-12
17,822,508 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PEEK	0.7	Precision Cleaning	PEEK (Polyetheretherketone)	M4	M4X15	M4-15
17,976,849 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PEEK	0.7	Precision Cleaning	PEEK (Polyetheretherketone)	M4	M4X20	M4-20
18,362,701 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	-	Box, Pkg.	PEEK	0.8	Precision Cleaning	PEEK (Polyetheretherketone)	M5	M5X8	M5-8
18,362,701 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PEEK	0.8	Precision Cleaning	PEEK (Polyetheretherketone)	M5	M5X10	M5-10
19,095,820 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PEEK	0.8	Precision Cleaning	PEEK (Polyetheretherketone)	M5	M5X12	M5-12
19,443,087 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PEEK	0.8	Precision Cleaning	PEEK (Polyetheretherketone)	M5	M5X15	M5-15
20,909,325 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	25	-	Box, Pkg.	PEEK	0.8	Precision Cleaning	PEEK (Polyetheretherketone)	M5	M5X25	M5-25
23,108,682 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	30	-	Box, Pkg.	PEEK	0.8	Precision Cleaning	PEEK (Polyetheretherketone)	M5	M5X30	M5-30
11,014,148 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X10	M6-10
11,014,148 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X12	M6-12
11,014,148 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X15	M6-15
11,554,341 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X20	M6-20
12,846,945 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	25	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X25	M6-25
13,580,064 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	30	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X30	M6-30
13,753,698 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	40	-	Box, Pkg.	PEEK	1	Precision Cleaning	PEEK (Polyetheretherketone)	M6	M6X40	M6-40
15,586,495 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PEEK	1.25	Precision Cleaning	PEEK (Polyetheretherketone)	M8	M8X20	M8-20
16,319,614 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	25	-	Box, Pkg.	PEEK	1.25	Precision Cleaning	PEEK (Polyetheretherketone)	M8	M8X25	M8-25
17,052,733 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	30	-	Box, Pkg.	PEEK	1.25	Precision Cleaning	PEEK (Polyetheretherketone)	M8	M8X30	M8-30
17,785,852 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	40	-	Box, Pkg.	PEEK	1.25	Precision Cleaning	PEEK (Polyetheretherketone)	M8	M8X40	M8-40
40,311,897 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	-	Box, Pkg.	PPS	0.5	Precision Cleaning	PPS (Polyphenylenesulfide)	M3	M3X8	M3-8
40,504,823 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PPS	0.5	Precision Cleaning	PPS (Polyphenylenesulfide)	M3	M3X10	M3-10
41,083,601 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PPS	0.5	Precision Cleaning	PPS (Polyphenylenesulfide)	M3	M3X12	M3-12
41,855,305 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PPS	0.5	Precision Cleaning	PPS (Polyphenylenesulfide)	M3	M3X15	M3-15
42,241,158 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PPS	0.5	Precision Cleaning	PPS (Polyphenylenesulfide)	M3	M3X20	M3-20
40,504,823 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	6	-	Box, Pkg.	PPS	0.7	Precision Cleaning	PPS (Polyphenylenesulfide)	M4	M4X6	M4-6
40,890,675 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	-	Box, Pkg.	PPS	0.7	Precision Cleaning	PPS (Polyphenylenesulfide)	M4	M4X8	M4-8
41,083,601 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PPS	0.7	Precision Cleaning	PPS (Polyphenylenesulfide)	M4	M4X10	M4-10
41,855,305 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PPS	0.7	Precision Cleaning	PPS (Polyphenylenesulfide)	M4	M4X12	M4-12
42,241,158 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PPS	0.7	Precision Cleaning	PPS (Polyphenylenesulfide)	M4	M4X15	M4-15
42,819,936 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	4	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PPS	0.7	Precision Cleaning	PPS (Polyphenylenesulfide)	M4	M4X20	M4-20
42,999,357 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X8	M5-8
42,819,936 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X10	M5-10
43,398,714 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X12	M5-12
44,942,122 VND	1 Pack(s)	500 Pieces Per Package 500 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X15	M5-15
18,439,871 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X20	M5-20
19,597,428 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	25	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X25	M5-25
20,836,013 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	5	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	30	-	Box, Pkg.	PPS	0.8	Precision Cleaning	PPS (Polyphenylenesulfide)	M5	M5X30	M5-30
18,758,199 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	-	Box, Pkg.	PPS	1	Precision Cleaning	PPS (Polyphenylenesulfide)	M6	M6X10	M6-10
19,597,428 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	-	Box, Pkg.	PPS	1	Precision Cleaning	PPS (Polyphenylenesulfide)	M6	M6X12	M6-12
20,836,013 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PPS	1	Precision Cleaning	PPS (Polyphenylenesulfide)	M6	M6X20	M6-20
21,989,711 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	25	-	Box, Pkg.	PPS	1	Precision Cleaning	PPS (Polyphenylenesulfide)	M6	M6X25	M6-25
23,533,119 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	30	-	Box, Pkg.	PPS	1	Precision Cleaning	PPS (Polyphenylenesulfide)	M6	M6X30	M6-30
25,462,379 VND	1 Pack(s)	200 Pieces Per Package 200 Pieces Per Package		6 Day(s) or more	6	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	40	-	Box, Pkg.	PPS	1	Precision Cleaning	PPS (Polyphenylenesulfide)	M6	M6X40	M6-40
11,766,559 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	-	Box, Pkg.	PPS	1.25	Precision Cleaning	PPS (Polyphenylenesulfide)	M8	M8X15	M8-15
12,345,338 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	-	Box, Pkg.	PPS	1.25	Precision Cleaning	PPS (Polyphenylenesulfide)	M8	M8X20	M8-20
13,117,042 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	25	-	Box, Pkg.	PPS	1.25	Precision Cleaning	PPS (Polyphenylenesulfide)	M8	M8X25	M8-25
14,467,524 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	30	-	Box, Pkg.	PPS	1.25	Precision Cleaning	PPS (Polyphenylenesulfide)	M8	M8X30	M8-30
16,203,859 VND	1 Pack(s)	100 Pieces Per Package 100 Pieces Per Package		6 Day(s) or more	8	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	40	-	Box, Pkg.	PPS	1.25	Precision Cleaning	PPS (Polyphenylenesulfide)	M8	M8X40	M8-40
96,463 VND	1 Piece(s)		Available	6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	8	[Standard (Round)] Standard (Round)	Sold Individually (No Min. Purchase)	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X8	M3-8
96,463 VND	1 Piece(s)		Available	6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	10	[Standard (Round)] Standard (Round)	Sold Individually (No Min. Purchase)	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X10	M3-10
98,392 VND	1 Piece(s)		Available	6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	12	[Standard (Round)] Standard (Round)	Sold Individually (No Min. Purchase)	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X12	M3-12
100,322 VND	1 Piece(s)		Available	6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	15	[Standard (Round)] Standard (Round)	Sold Individually (No Min. Purchase)	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X15	M3-15
104,180 VND	1 Piece(s)		Available	6 Day(s) or more	3	Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	20	[Standard (Round)] Standard (Round)	Sold Individually (No Min. Purchase)	PEEK	0.5	Precision Cleaning	PEEK (Polyetheretherketone)	M3	M3X20	M3-20

Loading...Tải…

Basic InformationThông tin cơ bản

Environmental Compliance	RoHS compliant (10 substances)	Detailed Shape	Standard	Drive Type	Hex Socket
Material	Plastic	Thread Type	Metric, Coarse	Additional Shape	Standard
Material Certificate	Available

The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..

Top of the page

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

Tel:Số điện thoại:0222-361-1555
Fax:Số Fax:0222-361-2555
InquiryYêu cầu

MISUMI APP

Install MISUMI APP

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

How can we improve?

ConfigureTạo

Specification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước

Nominal of Thread (M)

Properties / applications

Length L (mm)

Basic Shape

Sales Unit

Plastic Material

Pitch(mm)

Cleaning Method

type

CADCAD

Days to ShipSố ngày giao hàng

Specify AlterationsChỉ định thay đổi

[Clean & Pack]Plastic Hex Socket Head Cap Screws - PEEK / PPS, Single Item / Small Box【1-500 Pieces Per Package】

Copy Part Number URL to Clipboard

(i) Caution thận trọng

Product Description

Specification Table

Product Specifications

Part Number

Basic InformationThông tin cơ bản

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

(i)
Caution

thận trọng
