Flanged Small Ball Bearings
Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.
Move the mouse over or click the image to zoom
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 17,163VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
Flanged Small Ball Bearings
Flanged small ball bearings are commonly used in applications such as dental handpieces and miniature pumps. These bearings are available in various sizes to choose from.
[Feature]
● Bearing Size Standards: Metric System
● Inner Diameter Minimum / Maximum (mm.) : 10 and 50
● Outer Diameter Minimum / Maximum (mm.) : 26 and 110
● Width Minimum / Maximum (mm.) : 8 and 27
● Precision (JIS) : Class 0
● Bearing Type : Closed (Double Shielded (ZZ))
● Load Direction : Radial Load
[Application]
It is used to support and guide rotating machine's components, such as shafts, wheels, pulleys ,etc
· It is made of industry standard bearing steel with high surface hardness and wear resistance.
· The vibration class of the product is above Z1
■Precautions when selecting
· Differences in specifications between MISUMI high-quality bearings and economy bearings [B6901ZZ (MISUMI quality bearing) and C-E6901ZZ (MISUMI economy bearing)]
.jpg)

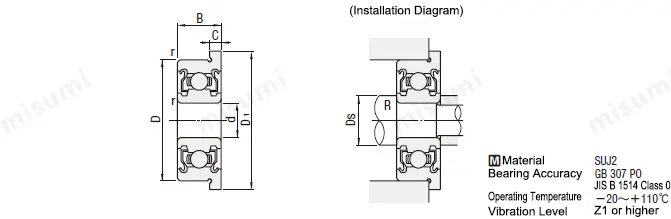

 Material | Bearing Precision | Operating Temperature | Vibration Class |
| Equivalent to SUJ2 | GB 307 P0 JIS B 1514 Class 0 | -20 to +110°C | Z1 or More |
Key points of economy series products confirmation ①| Part Number | Inner Diameter d | Outer Diameter D | Width B | D1 | C | r (min.) | Key points of economy series products confirmation Basic rated load | Allowable Speed rpm (Reference) | Mounting Dimensions | Weight (g) (reference) | |||
 Type |  No. | Cr (Dynamic) N | Cor (Static) N | Ds (min.) | R (max.) | ||||||||
| C-EFL | 682ZZ | 2 | 5 | 2.3 | 6.1 | 0.6 | 0.08 | 118 | 35 | 59500 | 2.7 | 0.08 | 0.22 |
| 692ZZ | 6 | 3 | 7.5 | 0.8 | 0.15 | 231 | 69 | 52500 | 3 | 0.15 | 0.48 | ||
| 682AZZ | 2.5 | 2.6 | 7.1 | 146 | 52 | 49700 | 3.7 | 0.08 | 0.36 | ||||
| 692AZZ | 7 | 3.5 | 8.5 | 0.9 | 270 | 89 | 44100 | 3.85 | 0.15 | 0.68 | |||
| 673ZZ | 3 | 6 | 2.5 | 7.2 | 0.6 | 0.1 | 146 | 52 | 44000 | 3.6 | 0.08 | 0.33 | |
| 683ZZ | 7 | 3 | 8.1 | 0.8 | 273 | 91 | 3.9 | 0.1 | 0.53 | ||||
| 693ZZ | 8 | 4 | 9.5 | 0.9 | 0.15 | 392 | 125 | 42000 | 4.2 | 0.15 | 0.97 | ||
| 603ZZ | 9 | 5 | 10.5 | 1 | 399 | 131 | 39000 | 1.63 | |||||
| 623ZZ | 10 | 4 | 11.5 | 441 | 153 | 35000 | 1.86 | ||||||
| 674ZZ | 4 | 7 | 2.5 | 8.2 | 0.6 | 0.1 | 155 | 62 | 42000 | 4.6 | 0.08 | 0.35 | |
| 684ZZ | 9 | 4 | 10.3 | 1 | 448 | 157 | 39000 | 5 | 0.1 | 1.14 | |||
| 694ZZ | 11 | 12.5 | 1 | 0.15 | 501 | 193 | 34000 | 5.2 | 0.15 | 1.96 | |||
| 604ZZ | 12 | 13.5 | 0.2 | 670 | 242 | 5.6 | 0.2 | 2.53 | |||||
| 624ZZ | 13 | 5 | 15 | 910 | 340 | 28000 | 3.53 | ||||||
| 675ZZ | 5 | 8 | 2.5 | 9.2 | 0.6 | 0.1 | 152 | 64 | 37000 | 0.08 | 0.41 | ||
| 685ZZ | 11 | 5 | 12.5 | 1 | 0.15 | 501 | 197 | 32000 | 6.2 | 0.15 | 2.18 | ||
| 695ZZ | 13 | 4 | 15 | 0.2 | 756 | 301 | 30000 | 6.6 | 0.2 | 2.84 | |||
| 605ZZ | 14 | 5 | 16 | 931 | 354 | 28000 | 3.85 | ||||||
| 625ZZ | 16 | 18 | 0.3 | 1210 | 469 | 25000 | 7.7 | 0.3 | 5.3 | ||||
| 676ZZ | 6 | 10 | 3 | 11.2 | 0.6 | 0.1 | 326 | 137 | 32000 | 6.6 | 0.1 | 0.77 | |
| 686ZZ | 13 | 5 | 15 | 1.1 | 0.15 | 756 | 308 | 28000 | 7 | 0.15 | 3.04 | ||
| 696ZZ | 15 | 17 | 1.2 | 0.2 | 945 | 371 | 7.6 | 0.2 | 4.26 | ||||
| 606ZZ | 17 | 6 | 19 | 0.3 | 1533 | 585 | 27000 | 8 | 0.3 | 6.61 | |||
| 626ZZ | 19 | 22 | 1.5 | 1635 | 620 | 22000 | 9.09 | ||||||
| 678ZZ | 8 | 12 | 3.5 | 13.6 | 0.8 | 0.1 | 361 | 176 | 28000 | 8.8 | 0.1 | 1.15 | |
| 688ZZ | 16 | 5 | 18 | 1.1 | 0.2 | 1127 | 497 | 25000 | 9.6 | 0.2 | 4.47 | ||
| 698ZZ | 19 | 6 | 22 | 1.5 | 0.3 | 1393 | 606 | 10 | 0.3 | 8.3 | |||
| 608ZZ | 22 | 7 | 25 | 2345 | 980 | 24000 | 13 | ||||||
| 6702ZZ | 15 | 21 | 4 | 22.5 | 0.8 | 0.2 | 656 | 407 | 11000 | 15.4 | 0.2 | 3.9 | |
| 6704ZZ | 20 | 27 | 28.5 | 729 | 510 | 8500 | 20.4 | 6.3 | |||||
| C-MFL | 104ZZ | 4 | 10 | 11.6 | 0.15 | 497 | 189 | 33600 | 5.9 | 0.15 | 1.5 | ||
| 105ZZ | 5 | 301 | 118 | 35000 | 6 | 1.38 | |||||||
| 126ZZ | 6 | 12 | 13.6 | 501 | 204 | 30100 | 7.2 | 1.86 | |||||
| 148ZZ | 8 | 14 | 15.6 | 0.15 | 572 | 270 | 26600 | 9.26 | 2.42 | ||||
kgf=N × 0.101972· In addition to the open type bearings, there are bearings with steel dust cover, bearings with contact rubber seal packing and bearings with non-contact rubber seal packing, or bearings with stop ring on the outer diameter of outer ring.
Ball bearings with dust cover or seal packing are sealed with proper amount of high-quality grease. Deep groove ball bearings generally adopt steel plate stamped cage, which has low friction torque and accuracy grade of 0.
■ Features of MISUMI Economy Bearings
(1) Why are all MISUMI Economy Bearings tested for noise and vibration? And we insist on making our products at "Z1" grade or above
Through testing the noise and vibration of bearings, it is possible to detect defects. Bearing vibration is classified into Z0, Z1, Z2, Z3, and Z4 levels (the higher the grade, the lower the noise and vibration).
(2) Why does MISUMI insist on using 'standard wall thickness' for economy bearings?
(3) Why does MISUMI insist on using high-performance "bearing steel" and "stainless steel" materials for its economy bearings?
* Products circulating on the market are similar products randomly purchased by our company from online or offline markets
* The test data are obtained through testing by our company, which are for reference only
Please use the following special mounting tool for installation and removal
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Inner Dia. d (Ø) | Outer Dia. D (Ø) | Width B (or T) (mm) | Basic Load Rating Cr (Dynamic) (N) | Allowable Rotational Speed (rpm) | Basic Load Rating Cor (Static) (N) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
18,453 VND | 1 Piece(s) | Available | Same day | 3 | 9 | 5 | 399 | 8000 | 131 | 1.63 | |
17,620 VND | 1 Piece(s) | Available | Same day | 4 | 12 | 4 | 670 | 8000 | 242 | 2.53 | |
20,508 VND | 1 Piece(s) | Available | Same day | 5 | 14 | 5 | 931 | 8000 | 354 | 3.85 | |
17,632 VND | 1 Piece(s) | Available | Same day | 6 | 17 | 6 | 1533 | 8000 | 585 | 6.61 | |
21,148 VND | 1 Piece(s) | Available | Same day | 8 | 22 | 7 | 2345 | 8000 | 980 | 13 | |
20,046 VND | 1 Piece(s) | Available | Same day | 3 | 10 | 4 | 441 | 8000 | 153 | 1.86 | |
17,623 VND | 1 Piece(s) | Available | Same day | 4 | 13 | 5 | 910 | 8000 | 340 | 3.53 | |
17,628 VND | 1 Piece(s) | Available | Same day | 5 | 16 | 5 | 1210 | 8000 | 469 | 5.3 | |
18,477 VND | 1 Piece(s) | Available | Same day | 6 | 19 | 6 | 1635 | 8000 | 620 | 9.09 | |
62,707 VND | 10 Piece(s) | 37 Day(s) | 15 | 21 | 4 | 656 | 11000 | 407 | 3.9 | ||
71,077 VND | 10 Piece(s) | 8 Day(s) | 20 | 27 | 4 | 729 | 8500 | 510 | 6.3 | ||
22,927 VND | 1 Piece(s) | Available | Same day | 3 | 6 | 2.5 | 146 | 8000 | 52 | 0.33 | |
21,256 VND | 1 Piece(s) | Available | Same day | 4 | 7 | 2.5 | 155 | 8000 | 62 | 0.35 | |
22,546 VND | 1 Piece(s) | Available | Same day | 5 | 8 | 2.5 | 152 | 8000 | 64 | 0.41 | |
22,547 VND | 1 Piece(s) | Available | Same day | 6 | 10 | 3 | 326 | 8000 | 137 | 0.77 | |
23,309 VND | 1 Piece(s) | Available | Same day | 8 | 12 | 3.5 | 361 | 8000 | 176 | 1.15 | |
46,264 VND | 10 Piece(s) | 37 Day(s) | 2.5 | 6 | 2.6 | 146 | 49700 | 52 | 0.36 | ||
47,834 VND | 10 Piece(s) | 37 Day(s) | 2 | 5 | 2.3 | 118 | 59500 | 35 | 0.22 | ||
17,235 VND | 1 Piece(s) | Available | Same day | 3 | 7 | 3 | 273 | 8000 | 91 | 0.53 | |
17,540 VND | 1 Piece(s) | Available | Same day | 4 | 9 | 4 | 448 | 8000 | 157 | 1.14 | |
17,163 VND | 1 Piece(s) | Available | Same day | 5 | 11 | 5 | 501 | 8000 | 197 | 2.18 | |
17,547 VND | 1 Piece(s) | Available | Same day | 6 | 13 | 5 | 756 | 8000 | 308 | 3.04 | |
18,082 VND | 1 Piece(s) | Available | Same day | 8 | 16 | 5 | 1127 | 8000 | 497 | 4.47 | |
45,480 VND | 10 Piece(s) | 37 Day(s) | 2.5 | 7 | 3.5 | 270 | 44100 | 89 | 0.68 | ||
46,264 VND | 10 Piece(s) | 37 Day(s) | 2 | 6 | 3 | 231 | 52500 | 69 | 0.48 | ||
19,664 VND | 1 Piece(s) | Available | Same day | 3 | 8 | 4 | 392 | 8000 | 125 | 0.97 | |
19,668 VND | 1 Piece(s) | Available | Same day | 4 | 11 | 4 | 501 | 8000 | 193 | 1.96 | |
20,278 VND | 1 Piece(s) | Available | Same day | 5 | 13 | 4 | 756 | 8000 | 301 | 2.84 | |
20,509 VND | 1 Piece(s) | Available | Same day | 6 | 15 | 5 | 945 | 8000 | 371 | 4.26 | |
17,640 VND | 1 Piece(s) | Available | Same day | 8 | 19 | 6 | 1393 | 8000 | 606 | 8.3 | |
41,244 VND | 10 Piece(s) | 16 Day(s) | 4 | 10 | 4 | 497 | 33600 | 189 | 1.5 | ||
45,166 VND | 10 Piece(s) | 16 Day(s) | 5 | 10 | 4 | 301 | 35000 | 118 | 1.38 | ||
44,382 VND | 10 Piece(s) | 16 Day(s) | 6 | 12 | 4 | 501 | 30100 | 204 | 1.86 | ||
45,951 VND | 10 Piece(s) | 16 Day(s) | 8 | 14 | 4 | 572 | 26600 | 270 | 2.42 |
Loading...Tải…
MISUMI established MISUMI Precision Machinery Co., Ltd. in China in June 2003, and then changed its name to MISUMI (China) Precision Machinery Trading Co., Ltd. in June 2007, with its headquarters in Shanghai. Since the beginning of the stamping die standard parts business, the businesses of FA standard parts, plastic die standard parts and machining tools have been officially started successively, and the rapid development of MISUMI in China has won the full support of customers. China's manufacturing industry has unlimited prospects, which is why China's manufacturing industry market has become one of the most competitive industries in the world.
MISUMI's business philosophy came into being - the key to the future development of China's manufacturing industry lies in cost competitiveness, "quality" and "time".
MISUMI's product quality is built by MISUMI in Japan in its 40-year business history. We offer world-class quality at very competitive prices. The delivery time marked in the catalog is agreed upon between us and our customers. Our strict compliance with delivery time has reached 99.96%. For MISUMI, customers’ time is the most precious resource, so we keep our promise strictly.
MISUMI will join hands with customers who value quality and time, and contribute our wisdom and strength to the development of China's manufacturing industry.
Basic InformationThông tin cơ bản
| Raceway Ring Shape | Ball | Bearing Type | Double Shielded | Outer Ring Type | With Flange |
|---|---|---|---|---|---|
| Inner/Outer Ring Material | SUJ2 Equiv. | Specifications, Environment | Standard / Dust Resistant | Precision (JIS) | Class 0 |
| Load Direction | Radial | Rolling Element Material | SUJ2 | Size Standards | Metric System |
| Number of Raceway Ring Rows | Single Row |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
Frequently asked question (FAQ)FAQ
- Question:Question: What is the difference between ball bearing and roller bearing?
- Answer:Answer: The contact between ball bearing and raceway is point contact, and the contact surface is oval when stressed. Because of the point contact, resisting force value is small, and the ball bearing is suitable for the application conditions of low torque and high rotational speed. They also have the characteristics of low noise. Ball bearings have low loading capacity but can bear radial and axial loads. The contact between roller bearing and raceway is line contact, and the contact surface is square when stressed. Because of the line contact, the torque of roller bearing is higher than that of ball bearing, and its rigidity is higher. Roller bearings have higher loading capacity, and cylindrical roller bearings have retaining edges to bear slight axial loads.
- Question:Question: What is the classification of bearings according to the shape of rolling elements?
- Answer:Answer: Rolling bearings are mainly divided into: ball bearings and roller bearings. Among them, ball bearings are divided into: deep groove ball bearings, angular contact bearings and radial thrust ball bearings. Roller bearings are divided into: cylindrical roller bearings, needle bearings, cone roller bearings and self-aligning roller bearings.
- Question:Question: What is the classification of bearings according to load direction?
- Answer:Answer: Bearing are divided into: radial bearings and thrust bearings according to the load direction. Among them, radial bearings are divided into: radial thrust ball bearings and radial roller bearings. Thrust bearings are divided into: thrust ball bearings and thrust roller bearings.
- Question:Question: What standard does the vibration class of this bearing meet?
- Answer:Answer: The vibration class of the bearing is above Z1
