Product DetailSpecification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước
-
Applicable Aluminum Frame Profile No.
- 6 mm Groove Width
- 8 mm Groove Width
- 10 mm Groove Width
-
Aluminum Frame Profile
- 2020
- 2028
- 3030
- 4040
- 4545
-
Additional Cover Mounting Hole Machining
- C (Mounting Hole Alteration for Cover)
- Not Provided
-
Accessories
- Not Provided
- SET (Steel Screws and Nuts Set)
-
Shape/Type
- Long Type
- Standard Type
-
type
- LBSB10
- LBSB6
- LBSB8
-
CADCAD
- 2D
- 3D
Days to ShipSố ngày giao hàng
-
- Alltất cả các
- Same day
Specify AlterationsChỉ định thay đổi
Tabbed Brackets For Aluminum Frames,
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 4,355VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
This is an economy item, The price is cheaper than the MISUMI standard product.
Die-cast angle pieces are widely used for right-angle connections of profiles.
Special accessories for European standard aluminum profiles can only be used with European standard aluminum profiles. Due to the different shapes of profile grooves, they cannot be used with MISUMI's existing Japanese standard (JIS) profiles and other national standard profiles.When purchasing accessories, please confirm the size of the accessories according to the profile specifications before choosing.
Examples of the differences in groove types and adaptation diagrams for various specifications of profiles
Material: ADC12
Surface treatment: Sandblasting>

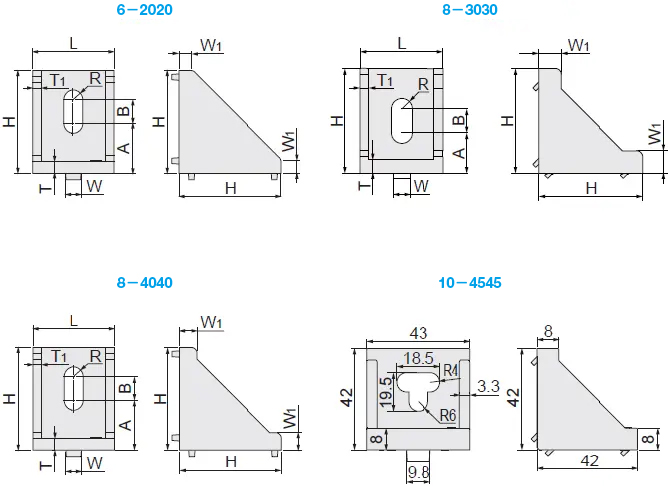

| Part Number | Extrusion Size | L | W | W1 | H | A | B | R | T | T1 | |
 Type |  No. | ||||||||||
| LBSB | 6－2020 | 2020 | 17 | 4.5 | 3 | 20 | 9 | 3 | 3.3 | 3 | 2 |
| 8－3030 | 3030 | 28 | 6 | 7 | 35 | 13.5 | 8 | 3.5 | 4 | 3 | |
| 8－4040 | 4040 | 35 | 7.8 | 7.5 | 40 | 12 | 15 | 4.8 | 5 | 4 | |
| 10－4545 | 4545 | Refer to the 45 series dimensional drawing | |||||||||
For more information on product specifications and dimensional drawings, please refer to the product catalog on the website.
■Alterations
Bracket Compared with the standard corner code, the wall thickness is slightly thinner. It is suitable for the construction process of European standard aluminum alloy profiles, and the occasions with low load requirements. The quality isstable and the installation is convenient.
Specify -SET for additional processing, and it can be delivered together with commonly used bolts and nuts.
| Additional processing items | Additional processing code | Specifications |
| Additional panel mounting hole processing | C | Process threaded holes on the corner brackets for panel mounting. 6-2020  8-3030/8-4040/10-4545  |
| Equipped with suitable bolts and nuts | SET | Equipped with appropriate bolts and nuts to fix the angle bracket to the profile. (Angle bracket + bolt + nut, added to the price of the angle bracket) When specifying SET, steel bolts and nuts are provided. ■T-bolt LTTB ■Flange nut LNCFM  The 2020 specification is equipped with cylindrical head bolts LTCM5-8 and T-nut LNTN6-20-5 |
Product Features
Simple specifications, beautiful
【Intended Use】
Special Bracket black for European standard aluminum profiles with groove width of 6 mm, suitable for connection of small hood, display bar structure.
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Applicable Aluminum Frame Profile No. | Aluminum Frame Profile | Additional Cover Mounting Hole Machining | Accessories | Shape/Type |
|---|---|---|---|---|---|---|---|---|---|
4,871 VND | 1 Piece(s) | Available | Same day | 6 mm Groove Width | 2020 | Not Provided | Not Provided | Standard Type | |
6,348 VND | 1 Piece(s) | Available | Same day | 6 mm Groove Width | 2020 | C (Mounting Hole Alteration for Cover) | Not Provided | Standard Type | |
9,489 VND | 1 Piece(s) | Available | Same day | 6 mm Groove Width | 2020 | C (Mounting Hole Alteration for Cover) | SET (Steel Screws and Nuts Set) | Standard Type | |
6,020 VND | 20 Piece(s) | Available | Same day | 6 mm Groove Width | 2020 | Not Provided | SET (Steel Screws and Nuts Set) | Standard Type | |
4,355 VND | 1 Piece(s) | Available | Same day | 6 mm Groove Width | 2020 | Not Provided | Not Provided | Long Type | |
7,769 VND | 1 Piece(s) | Available | Same day | 6 mm Groove Width | 2028 | C (Mounting Hole Alteration for Cover) | Not Provided | Long Type | |
10,757 VND | 1 Piece(s) | Available | Same day | 6 mm Groove Width | 2028 | C (Mounting Hole Alteration for Cover) | SET (Steel Screws and Nuts Set) | Long Type | |
7,186 VND | 20 Piece(s) | Available | Same day | 6 mm Groove Width | 2028 | Not Provided | SET (Steel Screws and Nuts Set) | Long Type | |
7,823 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 3030 | Not Provided | Not Provided | Standard Type | |
10,089 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 3030 | C (Mounting Hole Alteration for Cover) | Not Provided | Standard Type | |
14,785 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 3030 | C (Mounting Hole Alteration for Cover) | SET (Steel Screws and Nuts Set) | Standard Type | |
11,681 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 3030 | Not Provided | SET (Steel Screws and Nuts Set) | Standard Type | |
8,446 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 4040 | Not Provided | Not Provided | Standard Type | |
10,884 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 4040 | C (Mounting Hole Alteration for Cover) | Not Provided | Standard Type | |
22,642 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 4040 | C (Mounting Hole Alteration for Cover) | SET (Steel Screws and Nuts Set) | Standard Type | |
12,394 VND | 1 Piece(s) | Available | Same day | 8 mm Groove Width | 4040 | Not Provided | SET (Steel Screws and Nuts Set) | Standard Type | |
12,613 VND | 1 Piece(s) | Available | Same day | 10 mm Groove Width | 4545 | Not Provided | Not Provided | Standard Type | |
15,838 VND | 1 Piece(s) | Available | Same day | 10 mm Groove Width | 4545 | C (Mounting Hole Alteration for Cover) | Not Provided | Standard Type | |
20,689 VND | 1 Piece(s) | Available | Same day | 10 mm Groove Width | 4545 | C (Mounting Hole Alteration for Cover) | SET (Steel Screws and Nuts Set) | Standard Type | |
17,582 VND | 1 Piece(s) | Available | Same day | 10 mm Groove Width | 4545 | Not Provided | SET (Steel Screws and Nuts Set) | Standard Type |
Loading...Tải…
Basic InformationThông tin cơ bản
| Material | ADC12 | Surface Treatment | Sandblasting | Aluminum Frame Profile Series | European Standard |
|---|---|---|---|---|---|
| Bracket Type | Die Casting Angle Code |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
Frequently asked question (FAQ)FAQ
- Question:Question: Can aluminum alloy profiles be cut to a specified length? What is the cutting precision?
- Answer:Answer: Any length between 50 and 4000(mm) can be specified (Can be specified down to 0.5mm increments) for cutting, and the cutting tolerance is less than ±0.5mm.
- Question:Question: What is the difference between the pre-mounted nut and post-mounted nut?
- Answer:Answer: The pre-mounted nut must be installed from the end of the profile for use in new equipment. The post-mounted nut can be placed in the profile groove from any position for use in additional equipment.
