PBT plates have excellent insulation properties, machined properties, low water supply properties, and long-term thermal stability, so they are used in automotive electrical components, etc.

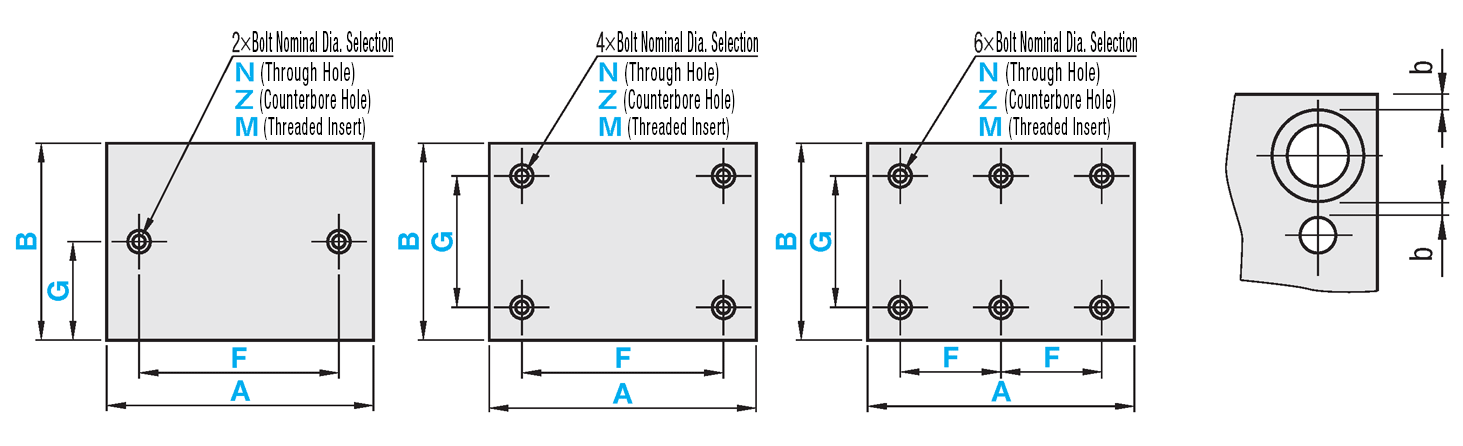

■ Standard Type		■ Hole Machined Type
		2H 4H 6H
[ ! ]A ≥ B		[!] Hole diameter / hole pitch dimension (F/G/XC/YC) tolerances are JIS B 0405 intermediate.
		* The hole position in dimensional outline drawing is not applicable because it is affected by the external dimensional tolerance. (Number of Holes: 2H, when selecting Alteration XC/YC)

Nominal Dia.	b (Minimum Value)
3 to 10	2.5

Finish	4 Sides		Upper-Lower Surface
Finish	Machining Method	Surface texture	Machining Method	Surface texture
Circular sawing	Circular sawing		Material
Guaranteed Perpendicularity of Circular Saw Cuts (NT)	Circular sawing		Material
4-side Milling, etc. * (4F)	Milling, etc.*		Material
6-surface Milling, etc. * (6F)	Milling, etc.*		Milling, etc.*
Upper-lower Surface Milling, etc. * (2F)	Circular sawing		Milling, etc.*
[ ! ] The roughness values of the material surface are for reference only. [M]Material: PBT Plates: Polybutylene Terephthalate

Hole Machining Details

N (Through Hole)

Z (Counterbored Hole)

N (Through Hole) / Z (Counterbored Hole) Details

M (Threaded Insert)

■Table 1 M (Thread Insert) Details

Bolt Nominal Dia.	3	4	5	6	8	10
d	3.5	4.5	5.5	6.5	9	11
d₁	6.5	8	9.5	11	14	—
h	4	5	6	7	9	—

Ordering Code (Example) M4-L6
[ ! ]L ≤ T－1
[ ! ] When L + 5 < T, drilled holes will be blind ones.

Type	[M] Material	Color	Operating Ambient Temperature
NPBT	PBT	White	Ambient Temperature: Up to 120°C

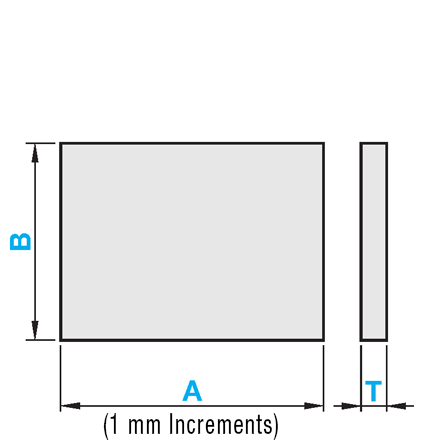

■ Standard Type

	Part Number	—	A	—	B	—	T
Circular sawing	NPBT	—	300	—	200	—	10
Guaranteed Perpendicularity of Circular Saw Cuts	NPBTNTM	—	350	—	200.5	—	20
4-side Milling^*	NPBT4FN	—	150.5	—	100.3	—	10
6-surface Milling, etc.^*	NPBT6FMN	—	100.3	—	90.5	—	15.5
Upper-lower Surface Milling, etc.^*	NPBT2FQ	—	80	—	55	—	13

■ Hole Machined Type

Part Number	—	A	—	B	—	T	—	F	—	G	—	Screw Nominal Dia.	—	L
NPBT2H NPBT2H	— —	200 180	— —	100 100	— —	15 10	— —	F50 F80	— —	G30 G60	— —	N5 M5	—	L5

● Dimensional tolerance of A and B

A·B	A, B Dimension Tolerance
Unit: mm	A, B Dimension Tolerance
Up to 99	±0.5
100 to 250	±0.75
251 or more	±1.0

● T Dimension Tolerance, Rate of Camber and Torsion

T	T Dimension Tolerance	Rate of Camber and Torsion per 1,000 mm
10	0 to +1.5	1.5% or less
15	0 to +2.5	1.5% or less
20	0 to +2.5	1.0% or Less

● Precision Guarantee

Finish	Width Parallelism	Angle of Reference Plane
	per 100 mm
Guaranteed Perpendicularity of Circular Saw Cuts	0.1	0.1
4-side Milling^*
6-surface Milling, etc.^*

[ ! ] Reference plane stickers are attached to 4-side milled plates.

Part Number						A	B	T
Type	Finish Selection	T Dimension Tolerance	A, B Dimension Tolerance
NPBT (PBT Plates White)	Circular sawing					1 mm Increments		Selection
	—	Not available	Not available			20 to 500	20 to 500	10·15·20
	Guaranteed Perpendicularity of Circular Saw Cuts (NT)					0.5 mm Increments		Selection
	NT	Not available		T10	T15·20	20 to 300	20 to 300	10·15·20
			Q	0 to +0.3	0 to +0.4
			N	±0.2	±0.3
			M	－0.3 to 0	－0.4 to 0
	4-side Milling^* (4F)					0.1 mm Increments		Selection
	4F	Not available	Q 0 to +0.2 N ±0.1 M －0.2 to 0			10 to 300	10 to 200	10·15·20
	6-surface Milling, etc.^* (6F)					0.1 mm Increments		0.1 mm Increments
	6F	Q 0 to +0.2 N ±0.1 M －0.2 to 0	Q 0 to +0.2 N ±0.1 M －0.2 to 0			10 to 300	10 to 200	5 to 19
	Upper-lower Surface Milling, etc.^* (2F)					1 mm Increments		0.1 mm Increments
	2F	Q 0 to +0.2 N ±0.1 M －0.2 to 0	Not available			20 to 300	20 to 250	5 to 19

Part Number		A	B	T	F	G	Hole Machined Type Screw Nominal Dia. Selection
							Through Hole	Counterbore Hole	Threaded Insert
Type	Number of Holes	1 mm Increments		Selection	0.5 mm Increments		N	Z	M	L
NPBT (PBT Plates)	2H 4H 6H	20 to 500	20 to 500	10	6 to 491.5 (2H·4H) 6 to 245.5 (6H)	4.5 to 495.5 (2H) 6 to 491.5 (4H·6H)	3 4 5 6 8 10	4 5 6	3 4 5 6 8	(Threaded Insert Length) from table 1 Selection
				15				4 5 6 8	3 4 5 6 8 10
				20				4 5 6 8	3 4 5 6 8 10

[!] Dimension F Specification Range – 2H/4H type selection: d (d₁) + 2.5 ≤ F ≤ A − d (d₁) − 5; for 6H: d (d₁) + 2.5 ≤ F ≤ (A - d (d₁) - 5)/2 is required.

[!]Dimension G Specification Range – 2H type selection: d (d₁)/2 + 2.5 ≤ G ≤ B - d (d₁)/2 - 2.5; for 4H and 6H: d (d₁) + 2.5 ≤ G ≤ B - d (d₁) - 5 is required.
(d for through hole and threaded insert, d₁ for counterbore)

[ ! ] For Hole Machined Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).

Alterations	Corner Radius Machining	Corner Cut	Hole Position from Left	Hole Position from Bottom

Code	CRA·CRB·CRC·CRD	CCA·CCB·CCC·CCD	XC	YC
Spec.	Adds radius machining to any corner. R = 5 mm Increments [ ! ]10 ≤ A (B)－R (2R) [ ! ]5 ≤ CRA·CRB·CRC·CRD ≤ 100 Specification method (Example) Adds R10 machining at the corner of A and C CRA10－CRC10 [ ! ]Applicable only when standard type circular sawing, upper-lower surface milling, etc., (2F) is selected	Any corner can be cut. 5 ≤ corner cut ≤ 50 10 ≤ A - C (2C) or 10 ≤ B - C (2C) 5 mm Increments Ordering Code Example: When the corners of A and D are cut by C5 >> CCA5 - CCD5 [ ! ]Applicable only when standard type circular sawing, upper-lower surface milling, etc., (2F) is selected	XC = 0.5 mm Increments " ! " (2H, 4H Type) d (d₁ )/2 + 2.5 ≤ XC ≤ A - F - d (d₁ )/2 - 2.5 " ! " (6H Type) d (d₁ )/2 + 2.5 ≤ XC ≤ A - 2F - d (d₁ )/2 - 2.5	YC = 0.5 mm Increments [ ! ] d (d₁ )/2 + 2.5 ≤ YC ≤ B - G - d (d₁ )/2 - 2.5 [NG] Not available for 2H Type

Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.

Loading...Tải…

: 30; 45; 60

Part Number
NPBT2H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-491.5/0.5]-G[6-495.5/0.5]-M[3,4,5,6,8,10]
NPBT2H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-491.5/0.5]-G[6-495.5/0.5]-N[3,4,5,6,8,10]
NPBT2H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-491.5/0.5]-G[6-495.5/0.5]-Z[4,5,6,8,10]
NPBT4H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]
NPBT4H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]
NPBT4H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[4,5,6,8,10]
NPBT6H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]
NPBT6H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]
NPBT6H-[20-500/1]-[20-500/1]-[10,15,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[4,5,6,8,10]
NPBT-[20-500/1]-[20-500/1]-[10,15,20]

Price	Minimum Order Qty.	Days to ShipSố ngày giao hàng	RoHS	Hole Drilling	A (mm)	B (mm)	Counterbored Hole Nominal Dia. [Z]	F (mm)	G (mm)	Nominal Dia. of Threaded Insert [M]	T (mm)	Through Hole Nominal Dia. [N]
-	1 Piece(s)	8 Day(s) or more	10	2H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 495.5	3 ～ 10	10 ～ 20	-
-	1 Piece(s)	8 Day(s) or more	10	2H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 495.5	-	10 ～ 20	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	2H	20 ～ 500	20 ～ 500	4 ～ 10	6 ～ 491.5	6 ～ 495.5	-	10 ～ 20	-
-	1 Piece(s)	8 Day(s) or more	10	4H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 491.5	3 ～ 10	10 ～ 20	-
-	1 Piece(s)	8 Day(s) or more	10	4H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 491.5	-	10 ～ 20	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	4H	20 ～ 500	20 ～ 500	4 ～ 10	6 ～ 491.5	6 ～ 491.5	-	10 ～ 20	-
-	1 Piece(s)	8 Day(s) or more	10	6H	20 ～ 500	20 ～ 500	-	6 ～ 245.5	6 ～ 491.5	3 ～ 10	10 ～ 20	-
-	1 Piece(s)	8 Day(s) or more	10	6H	20 ～ 500	20 ～ 500	-	6 ～ 245.5	6 ～ 491.5	-	10 ～ 20	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	6H	20 ～ 500	20 ～ 500	4 ～ 10	6 ～ 245.5	6 ～ 491.5	-	10 ～ 20	-
-	1 Piece(s)	4 Day(s) or more	10	No Drilling Alteration	20 ～ 500	20 ～ 500	-	-	-	-	10 ～ 20	-

Loading...Tải…

Product TOP

Material	PBT	Grade	Standard	Color	White
Material Name	PBT
