Name: Unilate® (Free-cutting Resin)
Brand: MISUMI
Availability: PreOrder

Brand :

MISUMI

Part Number :

YCA2H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[4.5-995.5/0.5]-M[3,4,5,6,8,10]

Order Qty :
Price :

---
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

UNILATE has excellent insulation, low water absorption, and rigidity, and is easy to cut and punch.

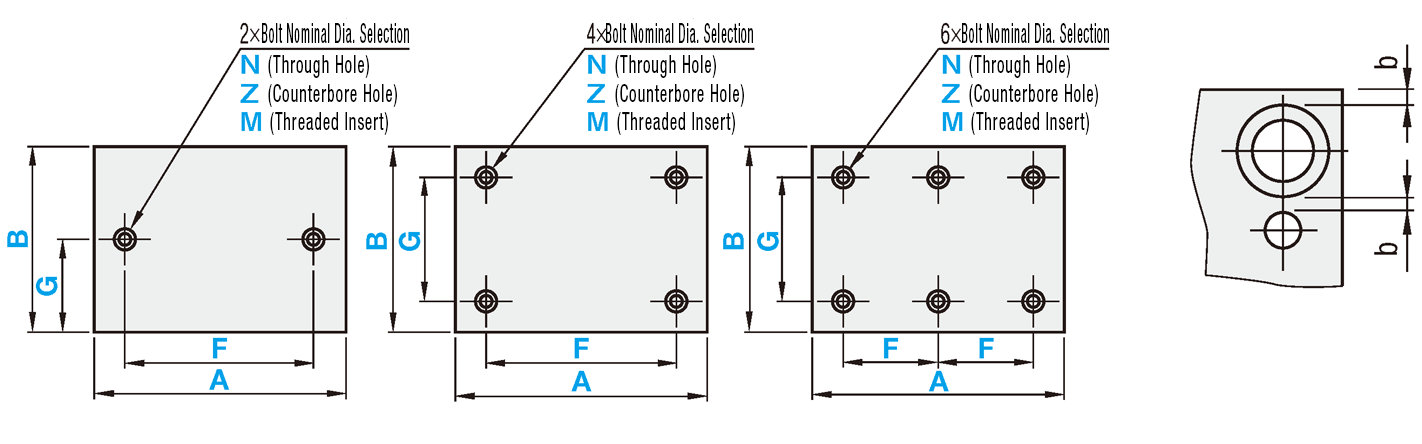

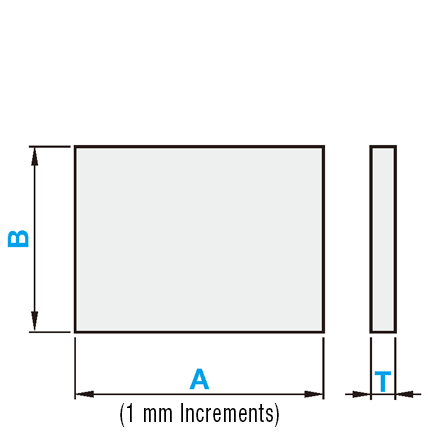

■ Standard Type		■ Hole Machined Type
		2H 4H 6H
[ ! ]A ≥ B		[!] Hole diameter / hole pitch dimension (F/G/XC/YC) tolerances are JIS B 0405 intermediate.
		* The hole position in dimensional outline drawing is not applicable because it is affected by the external dimensional tolerance. (Number of Holes: 2H, when selecting Alteration XC/YC)

Nominal Dia.	b (Minimum Value)
3 to 10	2.5

Finish	4 Sides		Upper-Lower Surface
Finish	Machining Method	Surface texture	Machining Method	Surface texture
Circular sawing	Circular sawing		Material
4-side Milling, etc. * (4F)	Milling, etc.*		Material
6-surface Milling, etc. * (6F)	Milling, etc.*		Milling, etc.*
Upper-lower Surface Milling, etc. * (2F)	Circular sawing		Milling, etc.*
[ ! ] The roughness values of the material surface are for reference only. [M]Material: Free-cutting Resin Plates: Polyethylene terephthalate

Hole Machining Details

N (Through Hole)

Z (Counterbored Hole)

N (Through Hole) / Z (Counterbored Hole) Details

M (Threaded Insert)

■Table 1 M (Thread Insert) Details

Bolt Nominal Dia.	3	4	5	6	8	10
d	3.5	4.5	5.5	6.5	9	11
d₁	—	8	9.5	11	14	—
h	—	5	6	7	9	—

Ordering Code (Example) M4-L6
[ ! ]L ≤ T－1
[ ! ] When L + 5 < T, drilled holes will be blind ones.

Type	[M] Material	Color	Operating Ambient Temperature
YCA	Unilate	Natural Brown	Ambient Temperature: Up to 120°C

Unilate is a registered trademark of Unitica Ltd.

■ Standard Type

	Part Number	—	A	—	B	—	T
· Circular Sawing	YCA	—	300	—	200	—	10
·4-side Milling^*	YCA4FN	—	150.5	—	100.3	—	5
·6-surface Milling, etc.^*	YCA6FMN	—	100.3	—	90.5	—	10.5
·Upper-lower Surface Milling, etc.^*	YCA2FQ	—	80	—	50	—	13

■ Hole Machined Type

Part Number	—	A	—	B	—	T	—	F	—	G	—	Screw Nominal Dia.	—	L
YCA2H	—	180	—	100	—	10	—	F80	—	G60	—	M5	—	L5

● Dimensional tolerance of A and B

A·B	A, B Dimension Tolerance
Unit: mm	A, B Dimension Tolerance
Up to 99	±0.5
100 to 250	±0.75
251 or more	±1.0

● T Dimension Tolerance, Rate of Camber and Torsion

YCA		Rates of Camber and Torsion
T	T Dimension Tolerance	per 1,000 mm
3	±0.35	—
5	±0.35	1.5% or less
10	0 to +3.0	1.5% or less
15	0 to +4.0	1.0% or Less
20	0 to +5.0	—

Precision Guarantee

Finish	Width Parallelism	Angle of Reference Plane
	per 100 mm
4-side Milling^*	0.1	0.1
6-surface Milling, etc.^*

[ ! ] Reference plane stickers are attached to 4-side milled plates.

Part Number				A	B	T
Type	Finish Selection	T Dimension Tolerance	A, B Dimension Tolerance
YCA Unilate (Free-cutting Resin)	Circular sawing			1 mm Increments		Selection
	—	Not available	Not available	20 to 1000	20 to 1000	3·5·10·15·20
	4-side Milling^* (4F)			0.1 mm Increments		Selection
	4F	Not available	Q 0 to +0.2	10 to 400	10 to 200	5·10·15
			N ±0.1
			M －0.2 to 0
	6-surface Milling, etc.^* (6F)			0.1 mm Increments		0.1 mm Increments
	6F	Q 0 to +0.2	Q 0 to +0.2	10 to 400	10 to 200	5 to 14
		N ±0.1	N ±0.1
		M －0.2 to 0	M －0.2 to 0
	Upper-lower Surface Milling, etc.^* (2F)			1 mm Increments		0.1 mm Increments
	2F	Q 0 to +0.2	Not available	20 to 400	20 to 250	5 to 14
		N ±0.1
		M －0.2 to 0

Part Number		A	B	T	F	G	Hole Machined Type Screw Nominal Dia. Selection
							Through Hole	Counterbore Hole				Threaded Insert
Type	Number of Holes	1 mm Increments		Selection	0.5 mm Increments		N	Z				M						L
YCA Unilate (Free-cutting Resin)	2H 4H 6H	20 to 1000	20 to 1000	3	6 to 991.5 (2H·4H) 6 to 495.5 (6H)	4.5 to 995.5 (2H) 6 to 991.5 (4H·6H)	3	—				—						—
							4
							5
				5			6					3	4					(Threaded Insert Length) Select from Table 1
				10			8	4	5	6		3	4	5	6	8
				15·20			10	4	5	6	8	3	4	5	6	8	10

[!] Dimension F Specification Range – 2H/4H type selection: d (d₁) + 2.5 ≤ F ≤ A - d (d₁) - 5; for 2HL: d (d₁)/2 + 2.5 ≤ F ≤ A - d (d₁)/2 - 2.5; for 6H: d (d₁) + 2.5 ≤ F ≤ (A - d (d₁) - 5)/2 is required.

[!]Dimension G Specification Range – 2H type selection: d (d₁)/2 + 2.5 ≤ G ≤ B - d (d₁)/2 - 2.5; for 2HL, 4H and 6H: d (d₁) + 2.5 ≤ G ≤ B - d (d₁) - 5 is required.
(d for through hole and threaded insert, d₁ for counterbore)

[ ! ] For Hole Machined Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).

Alterations	Corner Radius Machining	Corner Cut	Hole Position from Left	Hole Position from Bottom

Code	CRA·CRB·CRC·CRD	CCA·CCB·CCC·CCD	XC	YC
Spec.	Adds radius machining to any corner. R = 5 mm Increments [ ! ]10 ≤ A (B)－R (2R) [ ! ]5 ≤ CRA·CRB·CRC·CRD ≤ 100 Ordering code (Example) Adds R10 at the corner of A and C CRA10－CRC10 [ ! ] Available for Standard Type only	Any corner can be cut. 5 ≤ corner cut ≤ 50 10 ≤ A - C (2C) or 10 ≤ B - C (2C) 5 mm Increments Ordering Code Example: When the corners of A and D are cut by C5 >> CCA5 - CCD5 [ ! ] Available for Standard Type only	XC = 0.5 mm Increments " ! " (2H, 4H Type) d (d₁ )/2 + 2.5 ≤ XC ≤ A - F - d (d₁ )/2 - 2.5 " ! " (6H Type) d (d₁ )/2 + 2.5 ≤ XC ≤ A - 2F - d (d₁ )/2 - 2.5	YC = 0.5 mm Increments [ ! ] d (d₁ )/2 + 2.5 ≤ YC ≤ B - G - d (d₁ )/2 - 2.5 [NG] Not available for 2H Type

Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.

Loading...Tải…

: 30; 45; 60

Part Number
YCA2H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[4.5-995.5/0.5]-M[3,4,5,6,8,10]
YCA2H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[4.5-995.5/0.5]-N[3,4,5,6,8,10]
YCA2H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[4.5-995.5/0.5]-Z[4,5,6,8]
YCA4H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[6-991.5/0.5]-M[3,4,5,6,8,10]
YCA4H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[6-991.5/0.5]-N[3,4,5,6,8,10]
YCA4H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-991.5/0.5]-G[6-991.5/0.5]-Z[4,5,6,8]
YCA6H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-495.5/0.5]-G[6-991.5/0.5]-M[3,4,5,6,8,10]
YCA6H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-495.5/0.5]-G[6-991.5/0.5]-N[3,4,5,6,8,10]
YCA6H-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]-F[6-495.5/0.5]-G[6-991.5/0.5]-Z[4,5,6,8]
YCA-[20-1000/1]-[20-1000/1]-[3,5,10,15,20]

Price	Minimum Order Qty.	Days to ShipSố ngày giao hàng	RoHS	Hole Drilling	A (mm)	B (mm)	Counterbored Hole Nominal Dia. [Z]	F (mm)	G (mm)	Nominal Dia. of Threaded Insert [M]	Through Hole Nominal Dia. [N]
-	1 Piece(s)	8 Day(s) or more	10	2H	20 ～ 1000	20 ～ 1000	-	6 ～ 991.5	4.5 ～ 995.5	3 ～ 8	-
-	1 Piece(s)	8 Day(s) or more	10	2H	20 ～ 1000	20 ～ 1000	-	6 ～ 991.5	4.5 ～ 995.5	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	2H	20 ～ 1000	20 ～ 1000	4 ～ 8	6 ～ 991.5	4.5 ～ 995.5	-	-
-	1 Piece(s)	8 Day(s) or more	10	4H	20 ～ 1000	20 ～ 1000	-	6 ～ 991.5	6 ～ 991.5	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	4H	20 ～ 1000	20 ～ 1000	-	6 ～ 991.5	6 ～ 991.5	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	4H	20 ～ 1000	20 ～ 1000	4 ～ 8	6 ～ 991.5	6 ～ 991.5	-	-
-	1 Piece(s)	8 Day(s) or more	10	6H	20 ～ 1000	20 ～ 1000	-	6 ～ 495.5	6 ～ 991.5	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	6H	20 ～ 1000	20 ～ 1000	-	6 ～ 495.5	6 ～ 991.5	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	6H	20 ～ 1000	20 ～ 1000	4 ～ 8	6 ～ 495.5	6 ～ 991.5	-	-
-	1 Piece(s)	4 Day(s) or more	10	No Drilling Alteration	20 ～ 1000	20 ～ 1000	-	-	-	-	-

Loading...Tải…

* For Details of color samples and features, see P. 951.

[ ! ]Properties and Machining Conditions >>P.953

Product TOP

Material	Unilate (Free-cutting Plastic)	Grade	Standard	Color	Natural Brown
Material Name	Unilate (Free-cutting Plastic)

The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
