Hexagon Socket Head Cap Screws Trivalent Chromate【1-1,000 Pieces Per Package】

Hexagon Socket Head Cap Screws Trivalent Chromate

Click this image to zoom it.Nhấp vào hình ảnh này để phóng to.

Move the mouse over or click the image to zoom

  • Hexagon Socket Head Cap Screws Trivalent Chromate
  • Hexagon Socket Head Cap Screws Trivalent Chromate
  • Hexagon Socket Head Cap Screws Trivalent Chromate
  • Hexagon Socket Head Cap Screws Trivalent Chromate
  • Hexagon Socket Head Cap Screws Trivalent Chromate
  • Volume Discount
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
208 Part Numbers Available

BOX-CBE2-5

BOX-CBE2-6

BOX-CBE2-8

BOX-CBE2-10

BOX-CBE2.6-5

BOX-CBE2.6-6

BOX-CBE2.6-8

BOX-CBE2.6-10

BOX-CBE3-4

BOX-CBE3-5

BOX-CBE3-6

BOX-CBE3-8

BOX-CBE3-10

BOX-CBE3-12

BOX-CBE3-15

BOX-CBE3-18

BOX-CBE3-20

BOX-CBE3-25

BOX-CBE3-30

BOX-CBE3-35

BOX-CBE2-5
BOX-CBE2-5

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
    • From :
      1,800VND/Unit
  • Order Qty :
  • Total Price :
    ---
  • Days to ship :
    ---

Select part number to Order Now/ Add to Cart

(i)

Caution

thận trọng

  • The product images may be representative images. See the Product Specifications for details.

PDFP.2-175-2014

Unit examples related to this product
Set-up Change Using Electromagnets
View other unit examplesXem các ví dụ đơn vị khác
CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

[Materials] SCM435.
[Surface Treatment] Trivalent Chromate.
[Strength Class] 10.9
[Thread Type] Metric, Coarse.
[Nominal of Thread (M)] 2, 2.6, 3, 4, 5, 6, 8, 10, 12.
[Sales Unit] Low Quantity (Available beginning with 1 pc.).

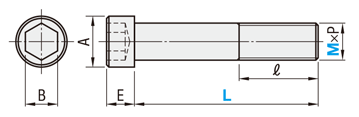

Dimensional Drawing

CBE

Hex Socket Head Cap Screws - Trivalent Chromate, Single Item / Small Box [1 to 1,000 pcs. included]: Related Images
[M]Material: SCM435
[S] Surface Treatment: Trivalent Chromate
[H]Hardness: HRC32 to 39
* Strength Class: 10.9

Specification Table

Part Number
CBE4−10
BOX-CBE3-4
[ ! ] BOX-CBE is sold by the box, and CBE is sold as a single item.

M × PAEB
2 × 0.43.821.5
2.6 × 0.454.52.62
3 × 0.55.532.5
4 × 0.7743
5 × 0.88.554
6 × 1.01065
8 × 1.251386
10 × 1.516108
12 × 1.75181210
L Dimension Tolerance
Dimension RangeTolerance
(mm)
Overor less
56±0.24
810±0.29
1216±0.35
2030±0.42
3550±0.5
6080±0.6
90120±0.7
[ ! ] Compliant with JIS B 1176.
Part Numberℓ
TypeM−L
CBE2−5Fully Threaded Studs
  6
  8
  10
CBE2.6−5Fully Threaded Studs
  6
  8
  10
CBE3−4Fully Threaded Studs
  5
  6
  8
  10
  12
  15
  18
  20
  2518
  30
  35
CBE4−5Fully Threaded Studs
  6
  8
  10
  12
  15
  18
  20
  25
  3020
  35
  40
  45
  50
CBE5−6Fully Threaded Studs
  8
  10
  12

Part Numberℓ
TypeM−L
CBE5−15Fully Threaded Studs
  18
  20
  25
  3022
  35
  40
  45
  50
CBE6−8Fully Threaded Studs
  10
  12
  15
  18
  20
  25
  30
  3524
  40
  45
  50
  55
  60
  65
  70
  75
CBE8−10Fully Threaded Studs
  12
  15
  18
  20
  25
  30
  35
  4028
  45
  50
  55

Part Numberℓ
TypeM−L
CBE8−6028
  65
  70
  75
  80
CBE10−15Fully Threaded Studs
  20
  25
  30
  35
  40
  4532
  50
  55
  60
  65
  70
  75
CBE12−15Fully Threaded Studs
  20
  25
  30
  35
  40
  45
  50
  5536
  60

Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.    Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...Tải…
30
45
60
  1. 1
  2. 2
  3. 3
  4. 4
  5. NextKế tiếp >>
Part Number
BOX-CBE2-5
BOX-CBE2-6
BOX-CBE2-8
BOX-CBE2-10
BOX-CBE2.6-5
BOX-CBE2.6-6
BOX-CBE2.6-8
BOX-CBE2.6-10
BOX-CBE3-4
BOX-CBE3-5
BOX-CBE3-6
BOX-CBE3-8
BOX-CBE3-10
BOX-CBE3-12
BOX-CBE3-15
BOX-CBE3-18
BOX-CBE3-20
BOX-CBE3-25
BOX-CBE3-30
BOX-CBE3-35
BOX-CBE4-5
BOX-CBE4-6
BOX-CBE4-8
BOX-CBE4-10
BOX-CBE4-12
BOX-CBE4-15
BOX-CBE4-18
BOX-CBE4-20
BOX-CBE4-25
BOX-CBE4-30
BOX-CBE4-35
BOX-CBE4-40
BOX-CBE4-45
BOX-CBE4-50
BOX-CBE5-6
BOX-CBE5-8
BOX-CBE5-10
BOX-CBE5-12
BOX-CBE5-15
BOX-CBE5-18
BOX-CBE5-20
BOX-CBE5-25
BOX-CBE5-30
BOX-CBE5-35
BOX-CBE5-40
BOX-CBE5-45
BOX-CBE5-50
BOX-CBE6-8
BOX-CBE6-10
BOX-CBE6-12
BOX-CBE6-15
BOX-CBE6-18
BOX-CBE6-20
BOX-CBE6-25
BOX-CBE6-30
BOX-CBE6-35
BOX-CBE6-40
BOX-CBE6-45
BOX-CBE6-50
BOX-CBE6-55
Part NumberPriceMinimum Order Qty.Number of pc(s). included in pkg.Number of pc(s). included in pkg.Volume DiscountDays to ShipSố ngày giao hàngRoHSNominal of Thread (M) Length L (mm) Pitch
(mm) 		Screw Type Sales Unit Environmentally friendly Thread Length ℓ
(mm)

4,609,100 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -250.4Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,609,100 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -260.4Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,609,100 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -280.4Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,609,100 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -2100.4Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,611,564 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -2.650.45Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,611,564 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -2.660.45Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,614,028 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -2.680.45Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

4,614,028 VND

1 Pack(s)

1,000 Pieces Per Package

1,000 Pieces Per Package

 4 Day(s) or more -2.6100.45Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,690,995 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -340.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,690,995 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -350.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,692,133 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -360.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,692,133 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -380.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,693,460 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3100.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,693,460 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3120.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,693,460 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3150.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,695,924 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3180.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,695,924 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3200.5Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,850,047 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3250.5Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)18

2,154,502 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3300.5Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)18

2,155,829 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -3350.5Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)18

1,923,412 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -450.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,695,924 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -460.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,697,062 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -480.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,698,389 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -4100.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,699,526 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -4120.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,852,512 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -4150.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,853,649 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -4180.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,854,976 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -4200.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,858,578 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -4250.7Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

958,104 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -4300.7Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)20

1,022,749 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -4350.7Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)20

2,411,374 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -4400.7Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)20

2,414,408 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -4450.7Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)20

1,208,152 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -4500.7Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)20

1,544,645 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -560.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,363,602 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -580.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,367,583 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -5100.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

615,716 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -5120.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,489,858 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -5150.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,733,460 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -5180.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,735,545 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -5200.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,739,526 VND

1 Pack(s)

400 Pieces Per Package

400 Pieces Per Package

 4 Day(s) or more -5250.8Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,027,109 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -5300.8Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)22

1,211,185 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -5350.8Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)22

1,338,199 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -5400.8Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)22

1,461,043 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -5450.8Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)22

1,588,057 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -5500.8Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)22

1,863,507 VND

1 Pack(s)

500 Pieces Per Package

500 Pieces Per Package

 4 Day(s) or more -681Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

748,436 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6101Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

748,815 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6121Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

750,900 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6151Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

871,280 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6181Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

872,796 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6201Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

875,261 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6251Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,033,555 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6301Fully ThreadedBox, Pkg.RoHS Compliant (10 Substances)Fully Threaded

1,218,009 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6351Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)24

1,346,161 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6401Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)24

1,564,739 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6451Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)24

1,688,910 VND

1 Pack(s)

200 Pieces Per Package

200 Pieces Per Package

 4 Day(s) or more -6501Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)24

846,066 VND

1 Pack(s)

100 Pieces Per Package

100 Pieces Per Package

 4 Day(s) or more -6551Semi-ThreadedBox, Pkg.RoHS Compliant (10 Substances)24

Loading...Tải…

  1. 1
  2. 2
  3. 3
  4. 4
  5. NextKế tiếp >>

Specifications / Overview

* The strength class signifies the screw's tensile strength.
Ex. 10.9
This indicates that the minimum value for yielding point or
proof stress is 90% of tensile strength.
This indicates that the minimum value of tensile strength is 1,040 N/mm2 .


Basic InformationThông tin cơ bản

Material SCM435 Equivalent SurfaceTreatment Trivalent Chromate Basic Shape Standard (Round)
Mounting Hole Shape Hex Socket Additional Shape Standard Thread Type Metric, Coarse
Strength Class (Steel) 10.9 Application Standard Characteristics/Applications Not applicable
Material Details SCM435

MISUMI Unit Example related to this product

Try to Find Other Examples

back next

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

  • Tel:Số điện thoại:0222-361-1555
  • Fax:Số Fax:0222-361-2555
  • InquiryYêu cầu

MISUMI APP

MISUMI APP QR

Install MISUMI APP

Mobile View Xem trên điện thoại

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

online.gov.vn

Copyright © MISUMI Corporation All Rights Reserved.
