Name: PPS Plates-Standard / Abrasion Resistance Grade
Brand: MISUMI
Availability: PreOrder

Brand :

MISUMI

Part Number :

NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]

NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10]

NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,4,5,6,8,10]

NPMS4H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

NPMS4H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

NPMS4H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

NPMS6H-[20-500/1]-[20-500/1]-[10,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

NPMS6H-[20-500/1]-[20-500/1]-[10,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

NPMS6H-[20-500/1]-[20-500/1]-[10,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

NPMS-[20-500/1]-[20-500/1]-[10,20]

NPPS2H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]

NPPS2H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10]

NPPS2H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,4,5,6,8,10]

NPPS4H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

NPPS4H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

NPPS4H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

NPPS6H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]

NPPS6H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]

NPPS6H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]

NPPS-[20-500/1]-[20-500/1]-[6,10,15,20,25]

NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]

Order Qty :
Price :

---
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

PPS is a resin plate with excellent heat resistance, dimensional stability, and chemical resistance, and is cheaper than PEEK.

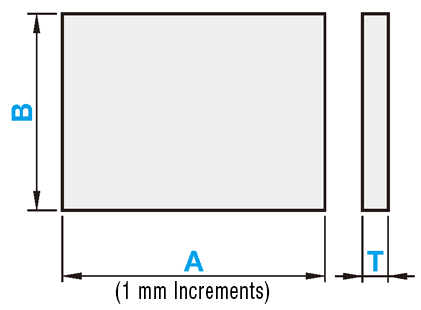

■ Standard Type

[ ! ]A ≥ B

Type	[M]Material / Grade	Color	Operating Ambient Temperature
NPPS	PPS / Standard	Natural Color	Ambient Temperature: Up to 190°C
NPMS	PPS / Abrasion Resistance Grade - Sliding	Blue	Ambient Temperature: Up to 220°C

[ ! ] PPS Standard Type generates an oxide film on the surface and the color turns to brown when it is exposed to light and heat (direct sunlight, fluorescent light, mercury lamp and high-temperature atmosphere) for long hours. However, it changes little in mechanical properties and physical properties.
[ ! ] The material is not filled with glass fiber.

Finish	4 Sides		Upper-Lower Surface
Finish	Machining Method	Surface texture	Machining Method	Surface texture
Circular sawing	Circular sawing		Material
Guaranteed Perpendicularity of Circular Saw Cuts (NT)	Circular sawing		Material
4-side Milling, etc. * (4F)	Milling, etc.*		Material
6-surface Milling, etc. * (6F)	Milling, etc.*		Milling, etc.*
Upper-lower Surface Milling, etc. * (2F)	Circular sawing		Milling, etc.*
[ ! ] The roughness values of the material surface are for reference only.

[M]Material: PPS (Polyphenylenesulfide)

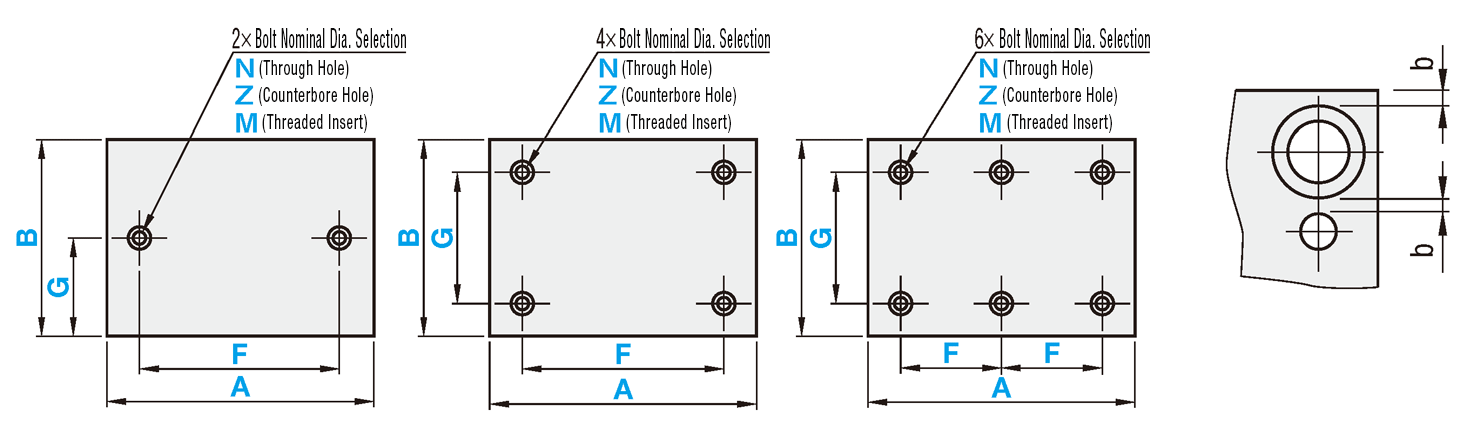

■ Hole Machined Type

Nominal Dia.	b (Minimum Value)
3 to 10	2.5

Finish	4 Sides		Upper-Lower Surface
	Machining Method	Surface texture	Machining Method	Surface texture
Circular sawing	Circular sawing		Material
[ ! ] The roughness values of the material surface are for reference only. [M]Material: PPS (Polyphenylenesulfide)

[!] A ≥ B [!] Hole diameter/hole pitch dimensions (F/G/XC/YC) Tolerance is JIS B 0405 Intermediate.
* The hole position in dimensional outline drawing is not applicable because it is affected by the external dimensional tolerance. (Number of Holes: 2H, when selecting Alteration XC/YC)

Hole Machining Details

N (Through Hole)

Z (Counterbored Hole)

N (Through Hole) / Z (Counterbored Hole) Details

M (Threaded Insert)

■Table 1 M (Thread Insert) Details

Bolt Nominal Dia.	3	4	5	6	8	10
d	3.5	4.5	5.5	6.5	9	11
d₁	6.5	8	9.5	11	14	—
h	4	5	6	7	9	—

Ordering Code (Example) M4-L6
[ ! ]L ≤ T－1
[ ! ] When L + 5 < T, drilled holes will be blind ones.

Type	[M]Material / Grade	Color	Operating Ambient Temperature
NPPS	PPS / Standard	Natural Color	Ambient Temperature: Up to 190°C
NPMS	PPS / Abrasion Resistance Grade - Sliding	Blue	Ambient Temperature: Up to 220°C

■ Standard Type

	Part Number	—	A	—	B	—	T
· Circular Sawing · Guaranteed Perpendicularity of Circular Saw Cuts ·4-side Milling^* ·6-surface Milling, etc.^* ·Upper-lower Surface Milling, etc.^*	NPPS NPMSNTM NPMS4FN NPMS6FMN NPMS2FQ	— — — — —	500 350 150.5 100.3 80	— — — — —	400 200.5 100.3 90.5 55	— — — — —	15 20 10 10.5 13

■ Standard Type
● Dimensional tolerance of A and B

A·B	A, B Dimension Tolerance
Unit: mm	A, B Dimension Tolerance
Up to 99	±0.5
100 to 250	±0.75
251 or more	±1.0

● T Dimension Tolerance, Rate of Camber and Torsion

T	T Dimension Tolerance		Rates of Camber and Torsion
T	NPPS	NPMS	per 1,000 mm
6	0 to +3	—	1.5% or less
10	0 to +4	0 to +1.5	1.5% or less
15		—	1.0% or Less
20		0 to +2.5
25·30		—

Precision Guarantee

Finish	Width Parallelism	Angle of Reference Plane
	per 100 mm
Guaranteed Perpendicularity of Circular Saw Cuts	0.1	0.1
4-side Milling^*
6-surface Milling, etc.^*

[ ! ] Reference plane stickers are attached to 4-side milled plates.

■ Hole Machined Type
● Dimensional tolerance of A and B

A·B	A, B Dimension Tolerance
Unit: mm	A, B Dimension Tolerance
Up to 99	±0.5
100 to 250	±0.75
251 or more	±1.0

● T Dimension Tolerance, Rate of Camber and Torsion

T	T Dimension Tolerance		Rates of Camber and Torsion
T	NPPS	NPMS	per 1,000 mm
6	0 to +3	—	1.5% or less
10	0 to +4	0 to +1.5	1.5% or less
15		—	1.0% or Less
20		0 to +2.5
25		—

Part Number							By material	A	B	T
Type	Finish Selection	T Dimension Tolerance	A, B Dimension Tolerance				Dimension Range
NPPS (PPS Plates - Standard Grade) NPMS (PPS Plates - Abrasion Resistance Grade, Sliding)	Circular sawing							1 mm Increments		Selection
	—	Not available	Not available				NPPS	20 to 500	20 to 500	6·10·15·20·25·30
							NPMS			10·20
	Guaranteed Perpendicularity of Circular Saw Cuts (NT)							0.5 mm Increments		Selection
	NT	Not available		T6·10	T15·20	T25	NPPS	20 to 500	20 to 400	6·10·15·20·25
			Q	0 to +0.3	0 to +0.4	0 to +0.5
			N	±0.2	±0.3	±0.4	NPMS			10·20
			M	－0.3 to 0	－0.4 to 0	－0.5 to 0
	4-side Milling^* (4F)							0.1 mm Increments		Selection
	4F	Not available	Q 0 to +0.2 N ±0.1 M －0.2 to 0				NPPS	10 to 400	10 to 200	6·10·15·20·25
							NPMS			10·20
	6-surface Milling, etc.^* (6F)							0.1 mm Increments		0.1 mm Increments
	6F	Q 0 to +0.2 N ±0.1 M －0.2 to 0	Q 0 to +0.2 N ±0.1 M －0.2 to 0				NPPS	10 to 400	10 to 200	5 to 24
							NPMS			5 to 19
	Upper-lower Surface Milling, etc.^* (2F)							1 mm Increments		0.1 mm Increments
	2F	Q 0 to +0.2 N ±0.1 M －0.2 to 0	Not available				NPPS	20 to 400	20 to 250	5 to 24
							NPMS			5 to 19

■ Hole Machined Type

Part Number	—	A	—	B	—	T	—	F	—	G	—	Screw Nominal Dia.	—	L
NPPS4H NPMS4H	— —	240 500	— —	130 400	— —	15 20	— —	F150 F300	— —	G40 G200	— —	M8 Z6	—	L12

Part Number		A	B	T		F	G	Hole Machined Type Screw Nominal Dia. Selection
Part Number		A	B	T		F	G	Through Hole	Counterbore Hole					Threaded Insert
Type	Number of Holes	1 mm Increments		NPPS	NPMS	0.5 mm Increments		N	Z					M						L
NPPS (PPS Plates - Standard Grade) NPMS (PPS Plates - Abrasion Resistance Grade, Sliding)	2H 4H 6H	20 to 500	20 to 500	6	—	6 to 491.5 (2H·4H) 6 to 245.5 (6H)	4.5 to 495.5 (2H) 6 to 491.5 (4-Hole, 6-Hole)	3 4 5 6 8 10	3					3	4	5				(Threaded Insert Length) from table 1 Selection
				10	10				3	4	5	6		3	4	5	6	8
				15	—					4	5	6	8	3	4	5	6	8	10
				20	20					4	5	6	8	3	4	5	6	8	10
				25	—					4	5	6	8	3	4	5	6	8	10

[!] Dimension F Specification Range – 2H/4H type selection: d (d₁) + 2.5 ≤ F ≤ A − d (d₁) − 5; for 6H: d (d₁) + 2.5 ≤ F ≤ (A - d (d₁) - 5)/2 is required.

[!]Dimension G Specification Range – 2H type selection: d (d₁)/2 + 2.5 ≤ G ≤ B - d (d₁)/2 - 2.5; for 4H and 6H: d (d₁) + 2.5 ≤ G ≤ B - d (d₁) - 5 is required.
(d for through hole and threaded insert, d₁ for counterbore)

[ ! ] For Hole Machined Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).

■ Standard Type

Alterations	Corner Radius Machining	Corner Cut

Code	CRA·CRB·CRC·CRD	CCA·CCB·CCC·CCD
Spec.	Adds radius machining to any corner. R = 5 mm Increments [ ! ]10 ≤ A (B)－R (2R) [ ! ]5 ≤ CRA·CRB·CRC·CRD ≤ 100 Ordering code (Example) Adds R10 at the corner of A and C CRA10－CRC10 [ ! ]Applicable only when standard type circular sawing, upper-lower surface milling, etc., (2F) is selected	Any corner can be cut. 5 ≤ corner cut ≤ 50 10 ≤ A - C (2C) or 10 ≤ B - C (2C) 5 mm Increments Ordering Code (Example) When the corners of A and D are cut by C5 →CCA5 - CCD5 [ ! ]Applicable only when standard type circular sawing, upper-lower surface milling, etc., (2F) is selected

■ Hole Machined Type

Alterations	Hole Position from Left	Hole Position from Bottom
Alterations
Code	XC	YC
Spec.	XC = 0.5 mm Increments " ! " (2H/4H Type) d (d₁ )/2 + 2.5 ≤ XC ≤ A - F - d (d₁ )/2 - 2.5 " ! " (6H Type) d (d₁ )/2 + 2.5 ≤ XC ≤ A - 2F - d (d₁ )/2 - 2.5	YC = 0.5 mm Increments [ ! ] d (d₁ )/2 + 2.5 ≤ YC ≤ B - G - d (d₁ )/2 - 2.5 [NG] Not available for 2H Type

Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.

Loading...Tải…

: 30; 45; 60

Part Number
NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]
NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10]
NPMS2H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,4,5,6,8,10]
NPMS4H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]
NPMS4H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]
NPMS4H-[20-500/1]-[20-500/1]-[10,20]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]
NPMS6H-[20-500/1]-[20-500/1]-[10,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]
NPMS6H-[20-500/1]-[20-500/1]-[10,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]
NPMS6H-[20-500/1]-[20-500/1]-[10,20]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]
NPMS-[20-500/1]-[20-500/1]-[10,20]
NPPS2H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4,5,6,8,10]
NPPS2H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10]
NPPS2H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z[3,4,5,6,8,10]
NPPS4H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]
NPPS4H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]
NPPS4H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]
NPPS6H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4,5,6,8,10]
NPPS6H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10]
NPPS6H-[20-500/1]-[20-500/1]-[6,10,15,20,25]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z[3,4,5,6,8,10]
NPPS-[20-500/1]-[20-500/1]-[6,10,15,20,25]

Price	Minimum Order Qty.	Days to ShipSố ngày giao hàng	RoHS	Grade	Color	Hole Drilling	A (mm)	B (mm)	Counterbored Hole Nominal Dia. [Z]	F (mm)	G (mm)	T (mm)	Threaded Insert Nominal Dia. [M]	Through Hole Nominal Dia. [N]
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	2H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	4.5 ～ 495.5	10 ～ 20	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	2H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	4.5 ～ 495.5	10 ～ 20	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	2H	20 ～ 500	20 ～ 500	3 ～ 10	6 ～ 491.5	4.5 ～ 495.5	10 ～ 20	-	-
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	4H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 491.5	10 ～ 20	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	4H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 491.5	10 ～ 20	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	4H	20 ～ 500	20 ～ 500	3 ～ 10	6 ～ 491.5	6 ～ 491.5	10 ～ 20	-	-
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	6H	20 ～ 500	20 ～ 500	-	6 ～ 245.5	6 ～ 491.5	10 ～ 20	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	6H	20 ～ 500	20 ～ 500	-	6 ～ 245.5	6 ～ 491.5	10 ～ 20	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	Abrasion Resistant	Blue	6H	20 ～ 500	20 ～ 500	3 ～ 10	6 ～ 245.5	6 ～ 491.5	10 ～ 20	-	-
-	1 Piece(s)	4 Day(s) or more	10	Abrasion Resistant	Blue	No Drilling Alteration	20 ～ 500	20 ～ 500	-	-	-	10 ～ 20	-	-
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	2H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	4.5 ～ 495.5	6 ～ 25	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	2H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	4.5 ～ 495.5	6 ～ 25	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	2H	20 ～ 500	20 ～ 500	3 ～ 10	6 ～ 491.5	4.5 ～ 495.5	6 ～ 25	-	-
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	4H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 491.5	6 ～ 25	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	4H	20 ～ 500	20 ～ 500	-	6 ～ 491.5	6 ～ 491.5	6 ～ 25	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	4H	20 ～ 500	20 ～ 500	3 ～ 10	6 ～ 491.5	6 ～ 491.5	6 ～ 25	-	-
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	6H	20 ～ 500	20 ～ 500	-	6 ～ 245.5	6 ～ 491.5	6 ～ 25	3 ～ 10	-
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	6H	20 ～ 500	20 ～ 500	-	6 ～ 245.5	6 ～ 491.5	6 ～ 25	-	3 ～ 10
-	1 Piece(s)	8 Day(s) or more	10	Standard	Ecru	6H	20 ～ 500	20 ～ 500	3 ～ 10	6 ～ 245.5	6 ～ 491.5	6 ～ 25	-	-
-	1 Piece(s)	4 Day(s) or more	10	Standard	Ecru	No Drilling Alteration	20 ～ 500	20 ～ 500	-	-	-	6 ～ 25	-	-

Loading...Tải…

Product TOP

Material	PPS	Material Name	PPS

The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..

Top of the page

Tel:Số điện thoại:0222-361-1555
Fax:Số Fax:0222-361-2555
InquiryYêu cầu

MISUMI APP

Install MISUMI APP

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

Bolt
Nominal Dia.
