Cross Recessed Hex Head Screws with Washer - Single Item / Small Box【1-1,000 Pieces Per Package】

Cross Recessed Hex Head Screws with Washer - Single Item / Small Box
  • Volume Discount
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
80 Part Numbers Available

BSET4-8

BSET4-10

BSET4-12

BSET4-14

BSET4-16

BSET4-20

BSET4-25

BSET4-30

BSET4-35

BSET4-40

BSET4-45

BSET4-50

BSET5-10

BSET5-12

BSET5-14

BSET5-16

BSET5-20

BSET5-25

BSET5-30

BSET5-35

BSET4-8
BSET4-8

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
    • From :
      2,919VND/Unit
  • Order Qty :
  • Total Price :
    ---
  • Days to ship :
    ---

Select part number to Order Now/ Add to Cart

PDFP.2-228-2014

Unit examples related to this product
Reverse Gripper
View other unit examplesXem các ví dụ đơn vị khác
CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

Sizes are M4 to M8. Shipment from 1 pc. is available as needed.

BSET
SBSET (Stainless Steel)
BSET
Screw[M]Material: Structural Alloy Steel
Screw JIS 0209 (6 g)
WashersSpring Washer JIS B 1251
Flat Washer JIS B 1256
[S] Surface TreatmentTrivalent Chromate
SBSET
Screw[M]Material: SUS304 Equivalent
* Strength Class: A2-50 equivalent
Screw JIS 0209 (6 g)
WashersSpring Washer JIS B 1251
Flat Washer JIS B 1256
[S] Surface TreatmentBarrel, Passivated

Specification Table

Part Number
BSET4－8
Part Number
Type
M－L
BSET
4-8
SBSET
10

12

14

16

20

25

30

35

40

45

50
BSET
5-10
SBSET
12

14

16

20

25

30

35

40

45

50
BSET
6-10
SBSET
12

14

16

Part Number
Type
M－L
BSET
6-20
SBSET
25

30

35

40

45

50

55

60

65

70

75
BSET
8-12
SBSET
14

16

20

25

30

35

40

45

50

55

60

65

70

75

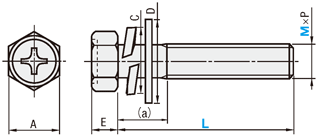

M×PAECD(a)
3×0.55.52.05.583.0
4×0.77.02.87.0104.4
5×0.88.03.58.5125.2
6×1.010.04.011.5136.3
8×1.2513.05.514.5188.4
10×1.517.07.017.52210.4
[ ! ](a) is the max length (reference) between
head surface and the complete thread.
